AC vs DC Ceiling Fan Motors: Why 3 Speeds Can't Compete with 10

A traditional ceiling fan gives you three speeds: low, medium, high. A modern smart DC fan gives you ten — and uses up to 70% less electricity doing it. That's not a coincidence. The same motor technology that unlocks fine-grained speed control is also what makes DC fans dramatically cheaper to run.

If you're choosing between an AC and a DC ceiling fan in 2026, the decision comes down to three measurable things: how much power the motor draws, how much noise it makes, and how precisely you can control it. Here's the real data on all three — with watts, decibels, dollars, and why the speed count on the box tells you more about your future energy bill than you'd think.

AC vs DC Ceiling Fan Motors: What's Actually Different

Both motor types do the same job — spin a set of blades to move air — but they get there along very different paths, and that difference is what drives every practical gap in energy use, noise, and speed control. Understanding it makes the rest of the comparison obvious.

How an AC Motor Works (and Why It Wastes Energy as Heat)

An AC (alternating current) motor connects directly to your home's power supply. It's the traditional design: simple, durable, inexpensive, and proven over decades. The catch is in how it generates motion. Because it runs straight off the grid's alternating current — 60 Hz in the U.S. — its rotational speed is effectively tied to that frequency, and a meaningful chunk of the energy it draws is lost to heat through what engineers call eddy-current losses. That wasted heat is electricity you paid for that never became airflow.

How a DC Motor Works (and Why It's More Efficient)

A DC (direct current) motor adds one step: a built-in converter transforms the incoming AC power into DC, then uses magnets to drive the rotor. Those extra electronics cost more to manufacture, but they pay off in efficiency. A DC motor converts far more of its input into actual blade movement and far less into waste heat — which is exactly why it can deliver the same airflow as an AC motor while drawing a fraction of the watts. The same electronic control also means its speed isn't chained to the grid frequency, which becomes important in a moment.

Energy Use: How Much Less Electricity a DC Fan Really Uses

Here's the part most buying guides skip — the actual numbers. A DC-motor fan uses roughly half to a third of the power an AC fan needs for the same breeze, and the gap only widens as you slow the fan down.

Setting	AC-motor fan	DC-motor fan	DC savings
High speed	50–100 W (avg 70–80)	25–35 W	~50–70%
Medium speed	40–55 W	8–15 W	~70%
Low speed	~35 W (can't go lower)	as low as 2 W	~90%+
Monthly cost (8 hrs/day, $0.18/kWh)	$2.16–$4.32	$0.34–$1.51	—

Sources: EIA residential rate data 2026; AC/DC wattage compiled from Rovert Lighting, SmartHomeExplorer, and CeilingAndFan, 2026.

Why DC Motors Use Up to 70% Less Power

The efficiency advantage is consistent and well documented: where an AC fan draws 100 watts, a comparable DC fan achieves the same result on about 30. That 50–70% reduction comes straight from the motor design — less energy lost to heat, more converted into moving air. It's also what earns the best DC fans their ENERGY STAR® certification, which requires a minimum of 75 CFM per watt and makes certified models up to 44% more efficient than conventional ones.

The Low-Speed Advantage (Where DC Wins Biggest)

Most households run a fan on low or medium roughly 80% of the time — and that's exactly where DC pulls furthest ahead. A DC motor can ease down to as little as 2 watts on its gentlest setting, while an AC motor bottoms out around 35 watts because it physically can't go any lower. If you mostly want quiet background circulation rather than a strong breeze, a DC fan is sipping power while an AC Motor ceiling fan is still gulping it. (That floor on AC's low speed isn't just an energy issue — it's a direct consequence of how few speeds an AC motor can offer at all, which is the next piece of the puzzle.)

Speed Control: 3 Speeds vs 10 Speeds — and Why It Saves You Money

This is the difference that looks like a convenience feature on the box but quietly shows up on your power bill every month. The number of speeds a fan offers isn't marketing fluff — it's a direct readout of which motor is inside and how finely you can dial in just-enough airflow.

Why AC Fans Are Stuck at 3 Speeds

An AC motor changes speed by switching between electrical winding taps — think of it as a highway with only three exits: low, medium, high. Some newer models add a fourth, but they're still working within tight physical limits, because the motor's speed is tied to the 60 Hz frequency of the power coming out of your wall. There's a hard floor on how slowly and finely it can turn. That's why the overwhelming majority of AC ceiling fans ship with exactly three speeds, and why even the lowest of those three already pushes a noticeable breeze.

How DC Motors Unlock 10 Speeds

A DC motor has no such ceiling. Because it controls speed by adjusting voltage rather than switching taps, it can vary continuously — and manufacturers slice that smooth range into discrete steps. Most DC fans offer six. The better smart models go further, into the 6-to-12 range. Smafan's DC fans offer 10, putting them at the top tier of the market — well beyond the typical six, and a different category entirely from the three speeds on a conventional AC fan, or the three physical speeds (four via app) found on some popular "smart" fans that still use older motor designs.

More Speeds = Lower Bills: The Energy Logic

More speeds isn't about having more buttons — it's about never being forced to over-run the fan. With three coarse settings, you're constantly choosing between "not quite enough" and "more than I need," and most people round up, paying for airflow they don't want. With ten fine steps, you settle on the exact speed that's comfortable — which is almost always lower than the coarse setting you'd have been stuck with. Sitting at a low-to-medium step instead of bumping up to a coarse "medium-high" can cut the fan's draw by 30–50%.

The fine control pays off in two more ways an AC fan simply can't match. The lowest step on a 10-speed DC fan barely moves air at all — perfect for winter, when you want to push warm air down off the ceiling without creating a chilly draft, something a 3-speed AC fan's lowest setting is already too strong to do. And convincing "natural breeze" simulation, which varies speed to mimic outdoor wind, needs at least six speed levels to feel real — so it's a DC-only feature by definition.

Noise: Why DC Fans Run Almost Silently

After efficiency, quiet is the advantage people notice most once a DC fan is installed — and it comes from the same brushless motor design.

Where the AC Hum Comes From

The faint hum or buzz you hear from a traditional fan is the motor itself. Alternating current constantly reverses direction, and that reversal creates friction and vibration inside an AC motor — audible especially at low speeds, which is the opposite of what you want in a quiet room. A DC motor runs on steady, one-directional current and is brushless, so it sidesteps the source of that noise almost entirely.

Best Rooms for a Silent DC Fan (Bedroom, Nursery, Office)

In practice, DC fans run 40–60% quieter than AC fans, and most operate below 40 decibels on low — quieter than a whispered conversation. That makes them the natural choice for bedrooms, nurseries, and home offices, where the difference between a faint hum and true silence is the difference between sleeping or concentrating and being subtly distracted all night.

Best DC Bedroom Ceiling Fans

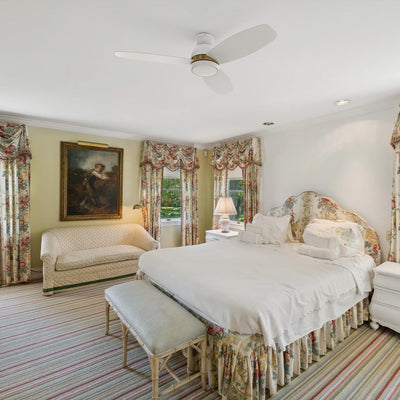

Biscay Pro Outdoor Flush Mount Smart Ceiling Fan with Led light remote 52 inch

From $159.00

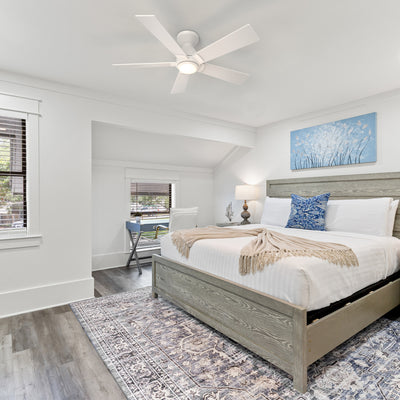

Armoy Low Profile Ceiling Fan with LED Light and Remote 52 inch

$159.00

Cost & Payback: Are DC Ceiling Fans Worth the Higher Price?

Let's be straight about the one place AC fans win: price. A DC fan costs more upfront, and it's fair to ask whether the efficiency makes up for it. The math says yes — but it's worth seeing why.

The Upfront Price Gap (and Why It Exists)

A DC fan typically runs $40–80 more than a comparable AC model. That premium pays for the converter and the additional electronics that make the motor efficient and finely controllable — it's the cost of the same technology that delivers the energy and speed advantages above. It's a real difference, not a rounding error, and it's the main reason someone would still reach for an AC fan.

Payback in 12–18 Months

Here's where the gap closes. A standard AC-motor fan running 12 hours a day uses about 0.9 kWh/day — roughly $4.86 a month. A DC fan at the same usage on medium (~12W) uses about 0.13 kWh/day, or roughly $0.70 a month. That's around $50 a year in savings, enough to cover the typical price premium within 12–18 months. After that, with a quality fan's 10-year lifespan, you're looking at the better part of a decade of pure savings — plus the quieter operation and finer control the entire time.

When an AC Fan Still Makes Sense

A DC fan isn't automatically right for everyone. If you're outfitting a rarely used space, a workshop, or a rental where upfront cost matters most and the fan won't run enough hours to earn back the premium, an AC fan's lower price and slightly simpler, longer-lived construction can be the sensible call. AC motors have fewer electronic components, which gives them a small edge in raw longevity. For any room you actually live in and run regularly, though, the DC advantages compound in your favor.

Smafan DC Motor Fans: 10 Speeds, Whisper-Quiet, Smart-Ready

Everything above is the reason Smafan builds exclusively around DC motors — the efficiency, the quiet, and the fine control aren't separate features, they're three results of the same engineering choice.

Across the smart ceiling fan range, every fan uses a DC motor with 10 finely-spaced speeds — top-tier control that lets you land on exactly the right airflow instead of rounding up to a coarse setting. They draw 25–35 watts on high and drop into the single digits at lower speeds, and many models carry ENERGY STAR® certification for verified efficiency.

On the smart side, Smafan fans work with both Amazon Alexa and Google Home, so you can adjust speed, set schedules, and control your fan by voice or app within the ecosystem you already use. The FriendlySmart™ sleep cycle takes advantage of those 10 speeds to step the fan down gradually through the night — a smoother, gentler wind-down than a 3-speed fan could ever offer. Standout models include the Essex 60" for large rooms, the Corvin 48" Smart Ceiling Fan with Integrated LED, the Icebreaker 52" downrod-mount fan, and the Sonoma 44" smart flush-mount for lower ceilings.

If your main question is whether a fan saves money against your air conditioner in the first place, our companion guide breaks down the full cooling-cost math: Ceiling Fan vs AC: Do They Really Save Money?
