Makani Industrial Ceiling Fan with Direct-Drive Motor 10-16ft
CDC-125S-037-240
- Regular price
-
$4,320.00 - Regular price
-
- Sale price
-
$4,320.00

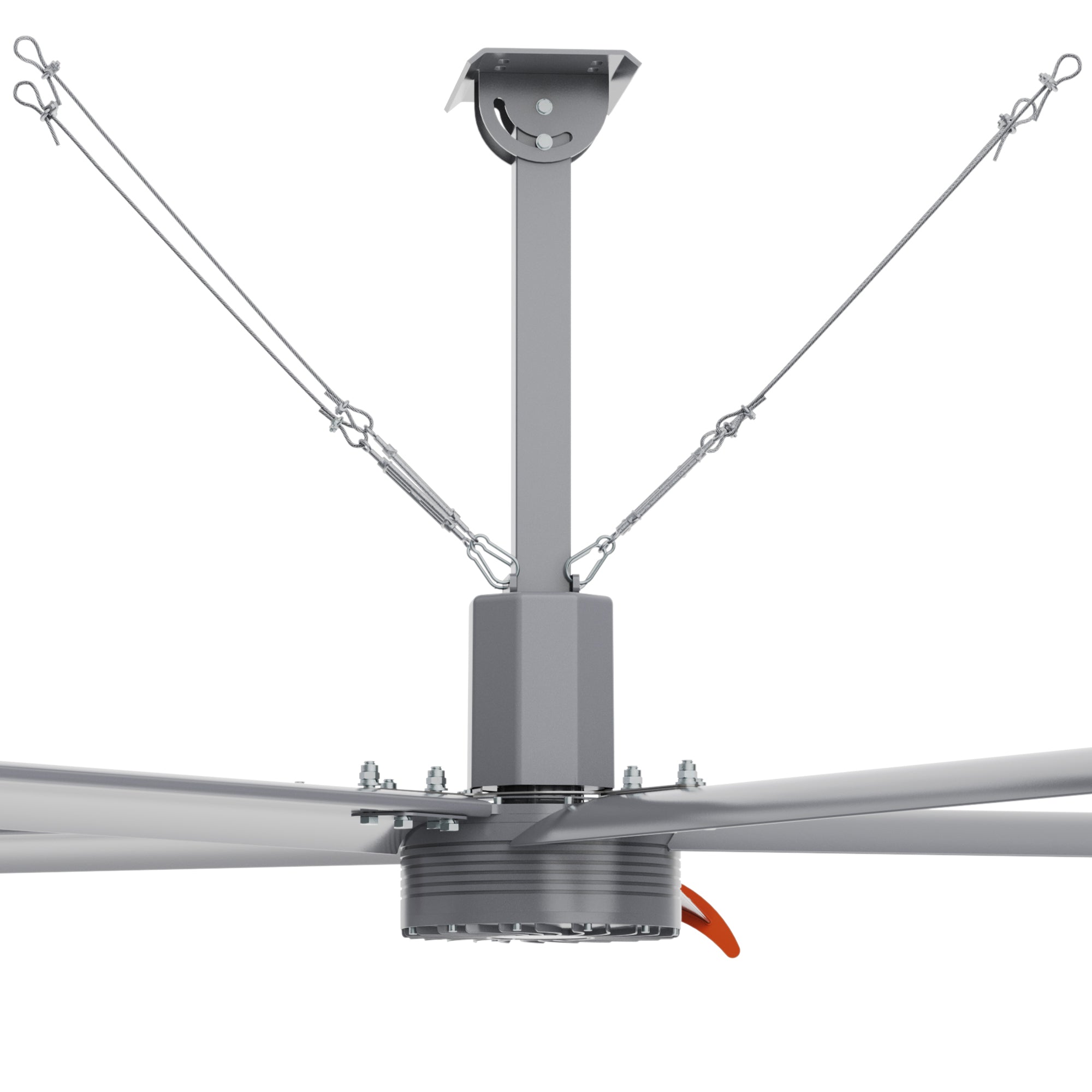

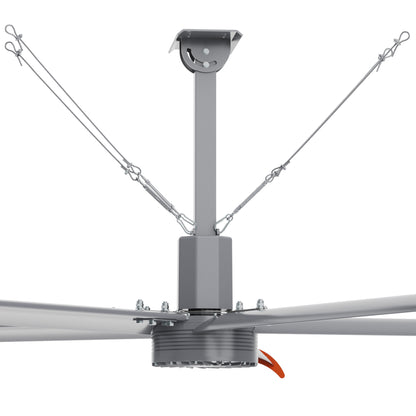

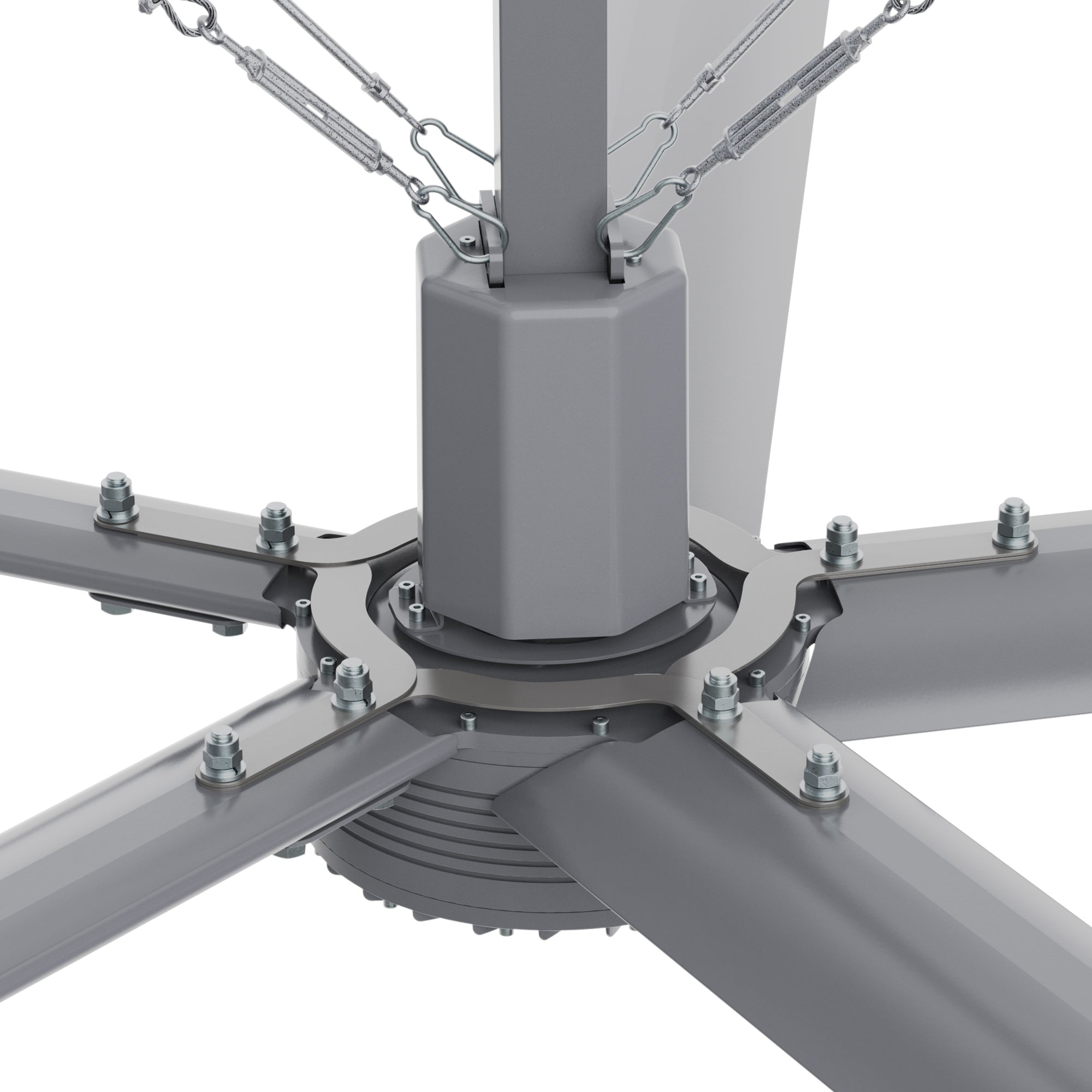

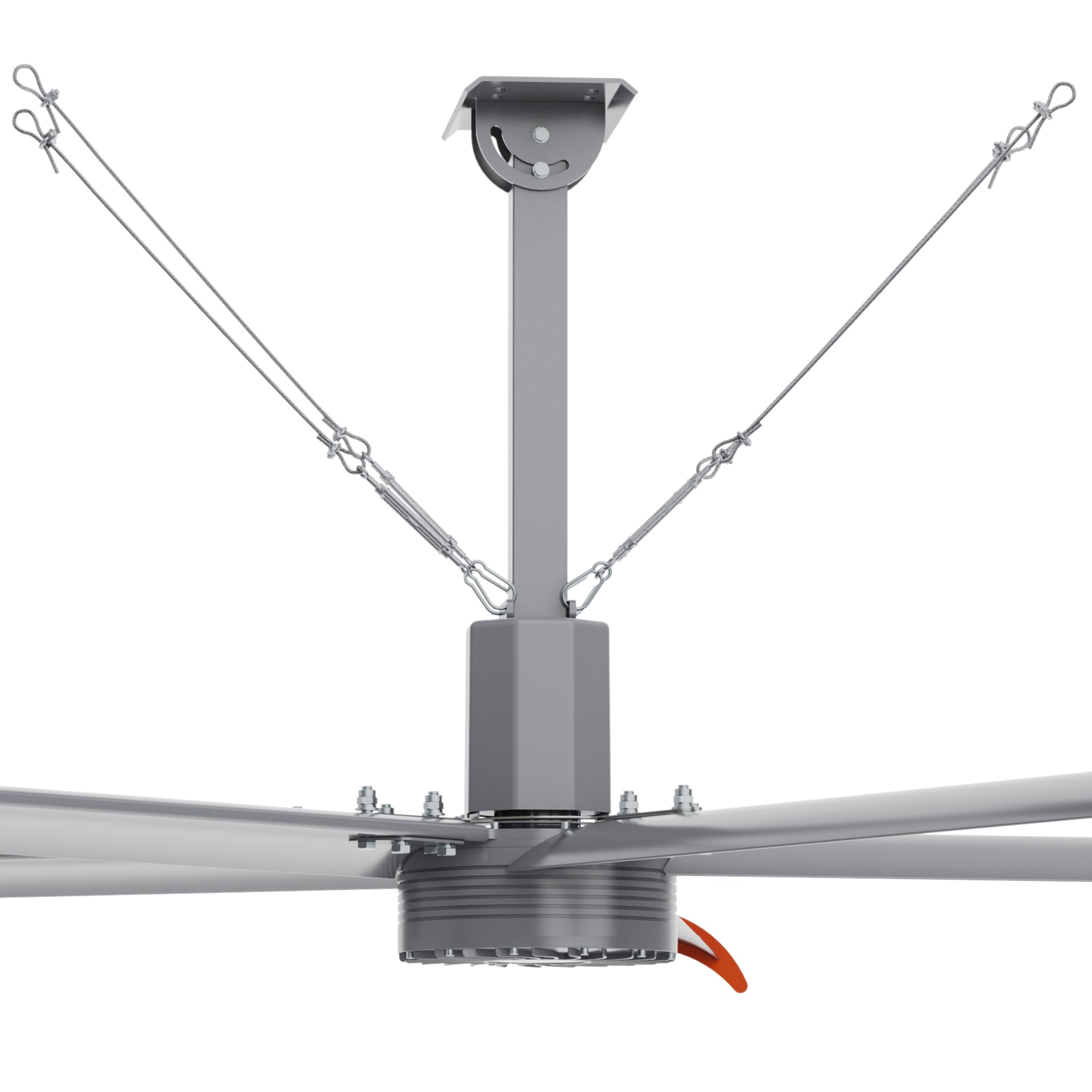

- Safety Features: Steel rope traction device ensures motor stability and prevents accidental falls, enhancing overall safety and reliability.
- IP55-rated Protection: This Industrial Overhead Fans fan is IP55-rated, providing resistance against dust and water, ensuring safe and prolonged operation in various indoor environments.
- Enhanced Energy Efficiency: Reversible
-
Hurry, only 6 items left in stock!
Couldn't load pickup availability
- Safety Features: Steel rope traction device ensures motor stability and prevents accidental falls, enhancing overall safety and reliability.
- IP55-rated Protection: This Industrial Overhead Fans fan is IP55-rated, providing resistance against dust and water, ensuring safe and prolonged operation in various indoor environments.
- Enhanced Energy Efficiency: Reversible
Shipping
Free Shipping $39+
Order Processing Time: Within 1-2 business days.
Estimate Transit Time: Shipping takes 2-6 business days. (continental USA only)
More details please see our shipping & receiving.
RETURNS INFO
45-day return, exchange, and refund.
Don't accept returns for product that has been installed, used, or damaged.
Which size fan is suitable for my room？
How long is the downrod for my ceiling?
Overview

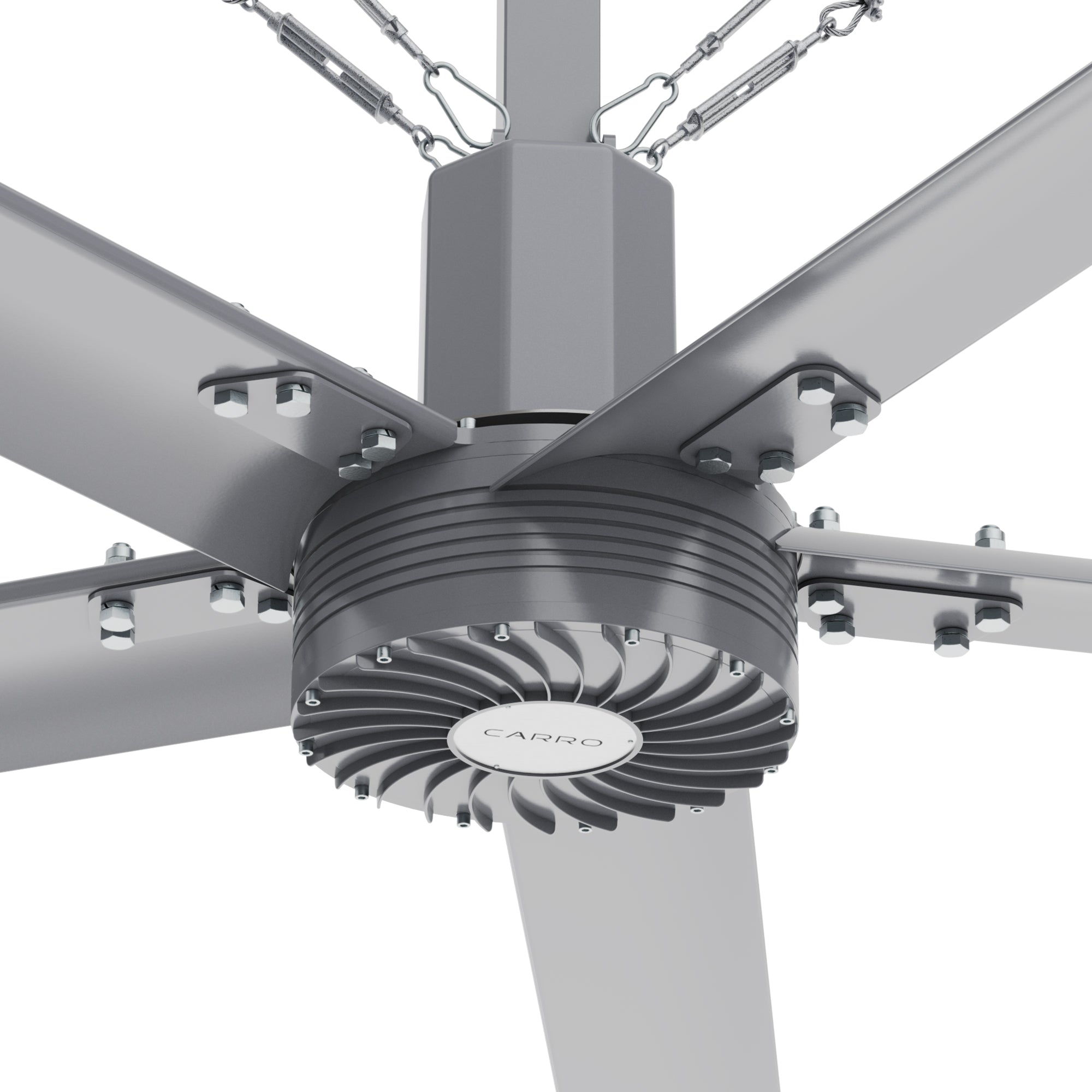

Makani Series Industrial HVLS Fans are designed to excel in circulating vast amounts of air efficiently, providing a cost-effective alternative to traditional air conditioning systems. These high-volume, low-speed (HVLS) fans are IP55-rated, ensuring they are well-suited for harsh environments with robust protection against dust and water. The advanced Permanent Magnet Motor enhances energy efficiency, extending the lifespan of the fans and ensuring long-term reliability. They offer versatile power configurations and sizes, available in 480V or 240V options, and available in 10ft, 12ft, 14ft or 16ft options. This flexibility accommodates various installation requirements, making these fans adaptable to diverse commercial and industrial environments. The fans feature a sleek and modern design that blends seamlessly into any large indoor setting, such as factories, gyms, agricultural environments, warehouses, and more.

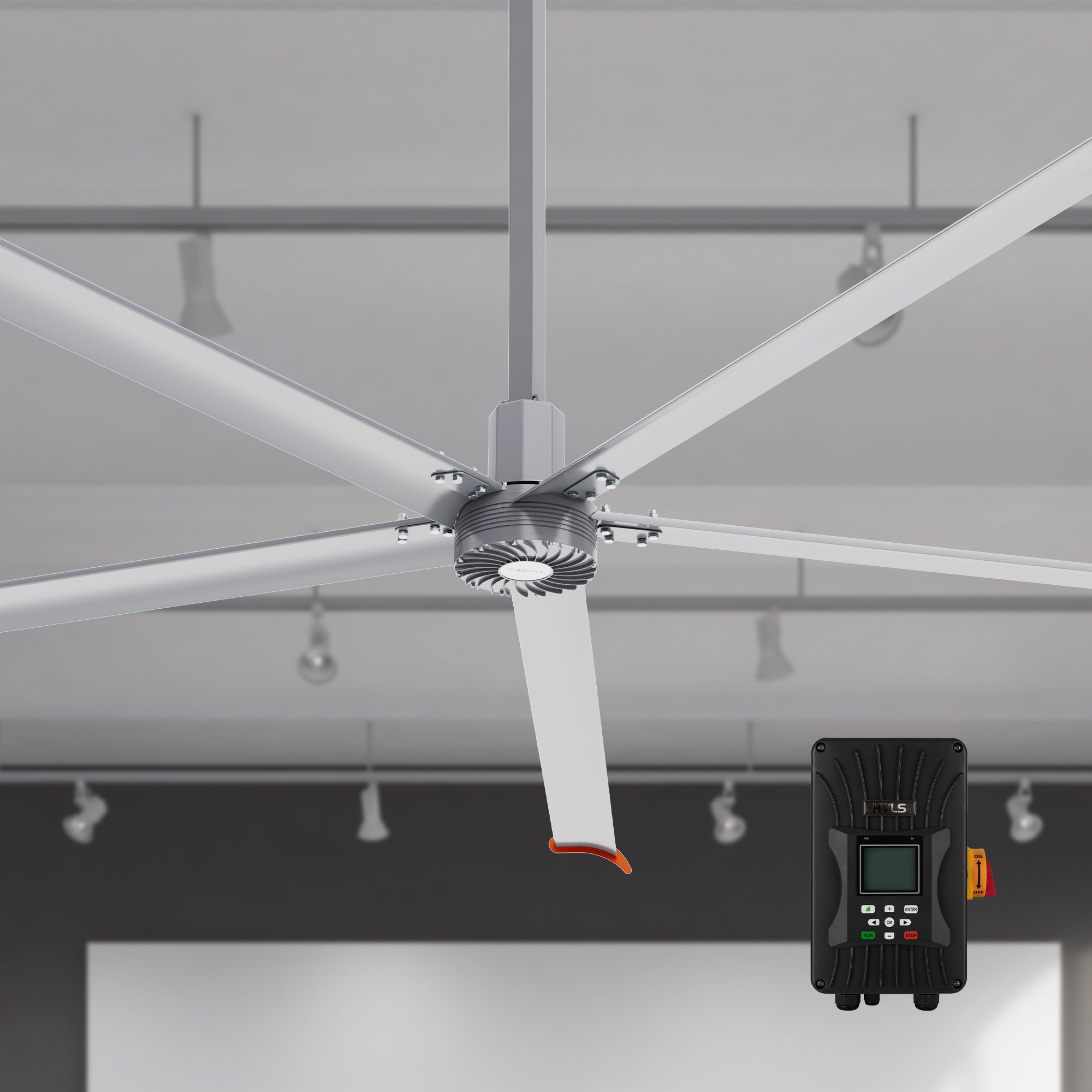

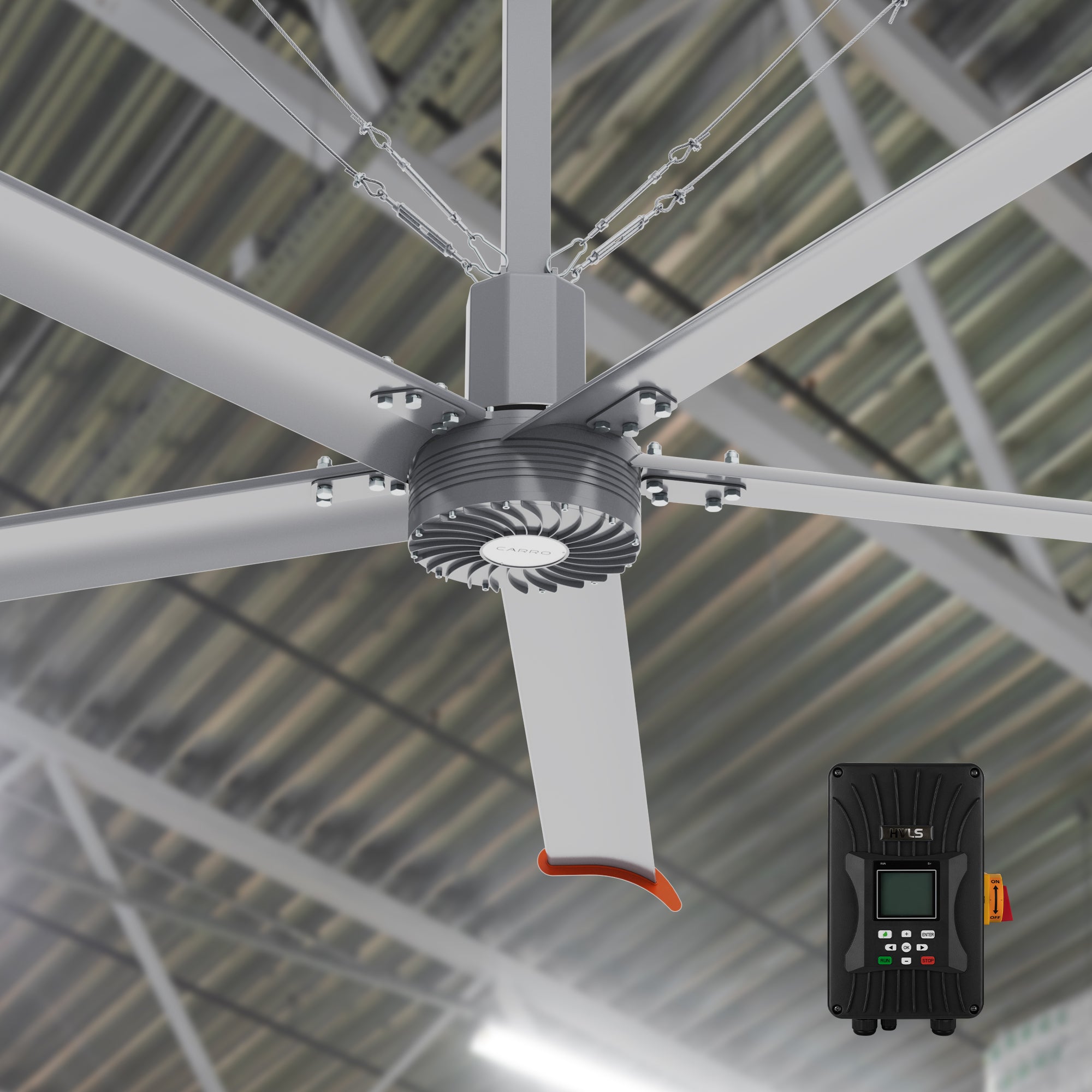

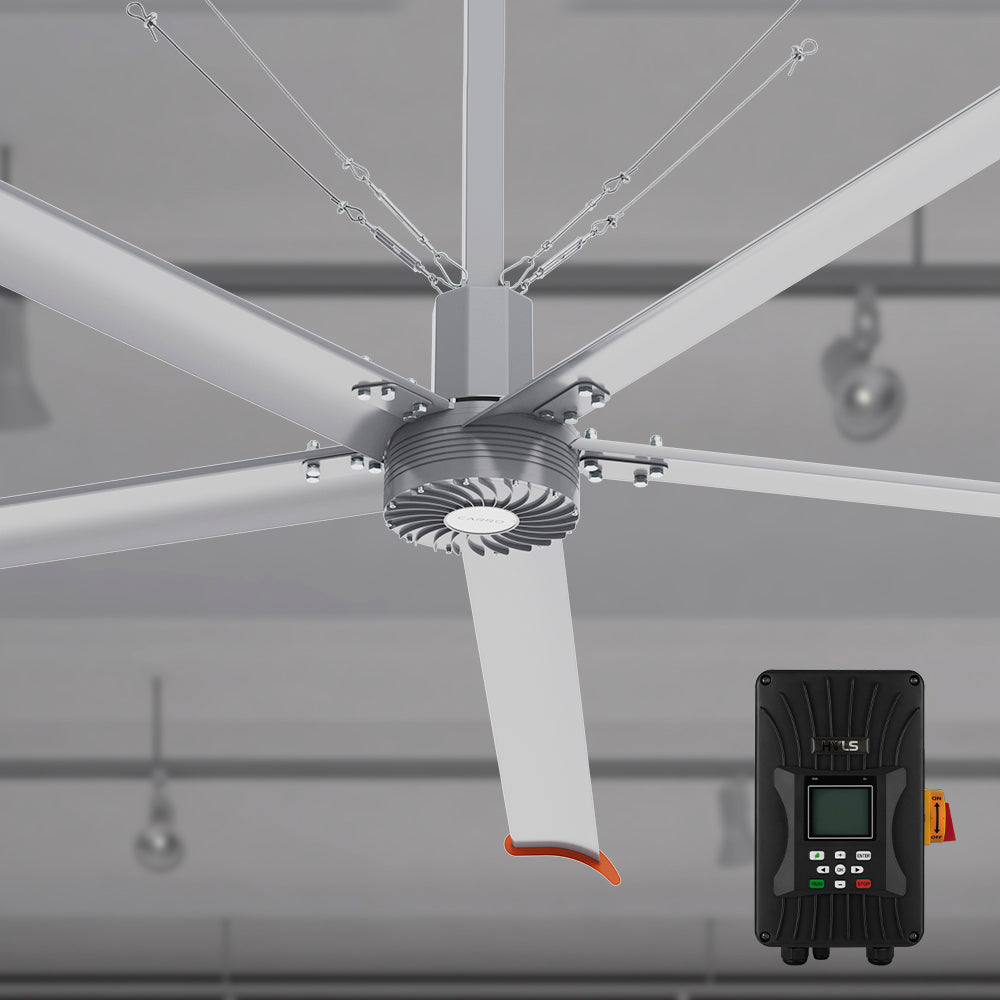

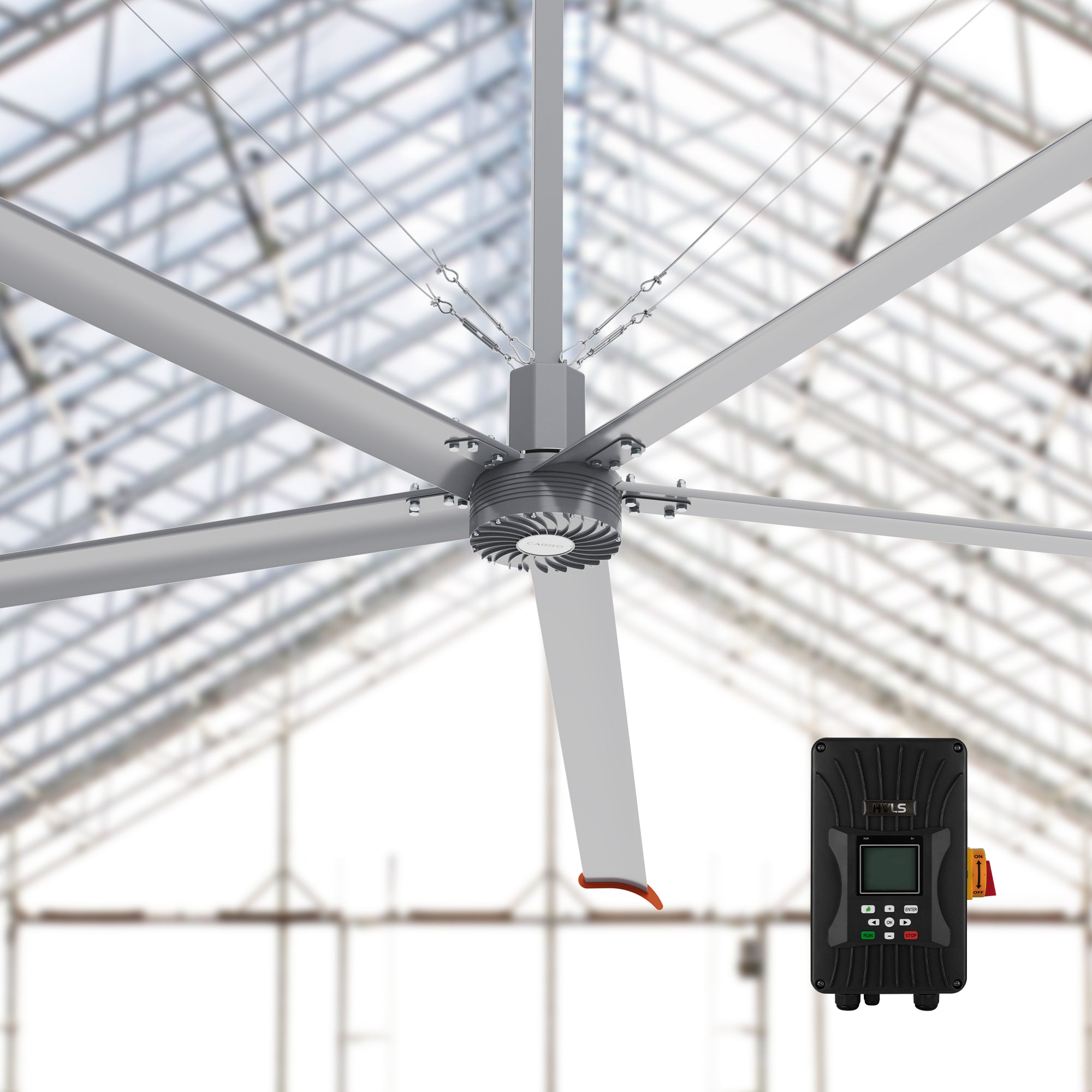

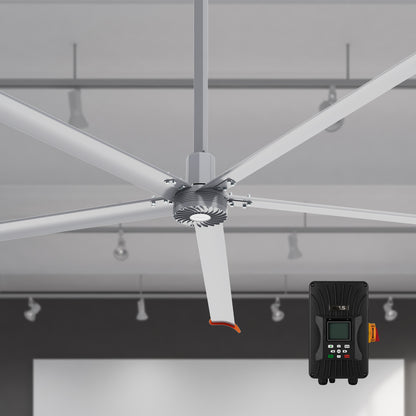

Wire Wall Controller
Installation & Support
Variable Speed
Whisper Motor
Energy Efficient
Indoor Use
Summer Mode
Winter Mode
Flexible Mounting
Wobble-free
Note: Ensuring safety, it is crucial to have the ceiling fan installed by a qualified professional team using professional tools.
- Speed up air circulation and create a healthy work environment for staff.

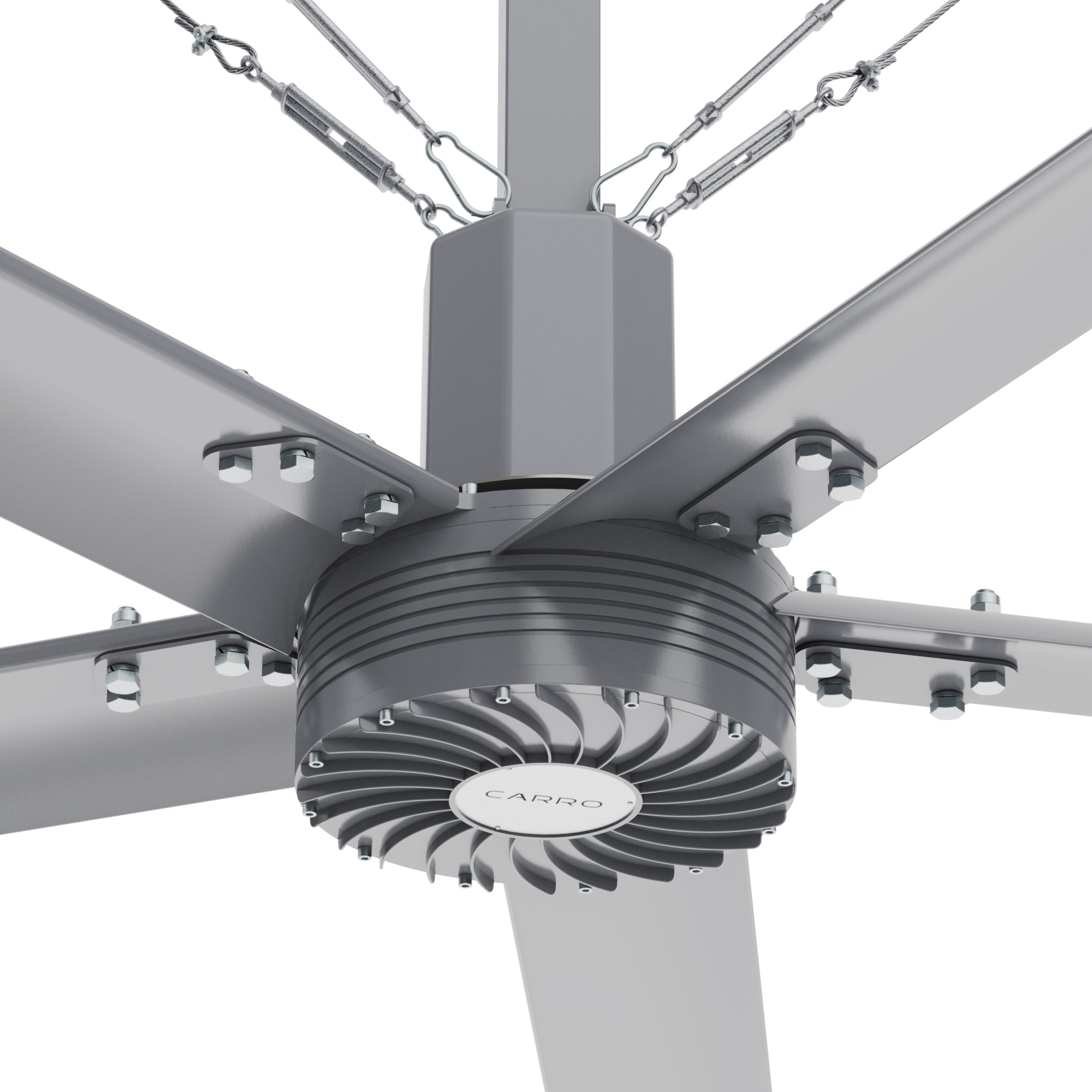

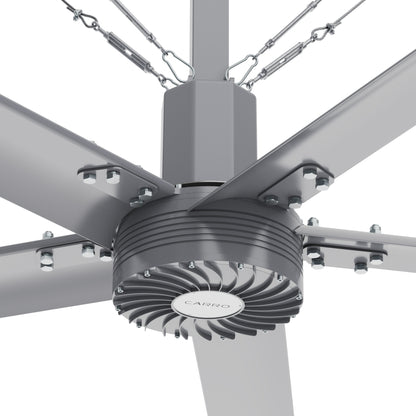

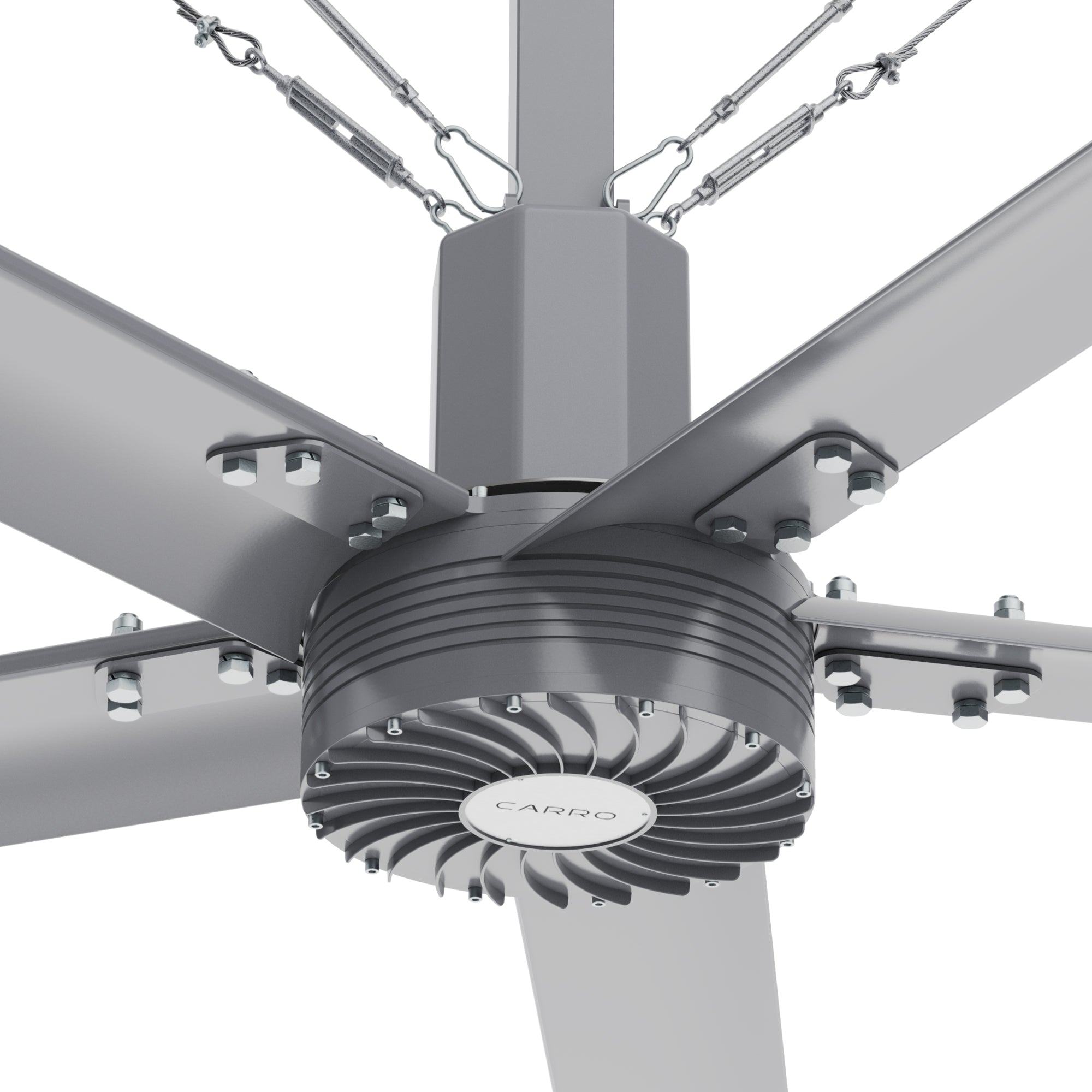

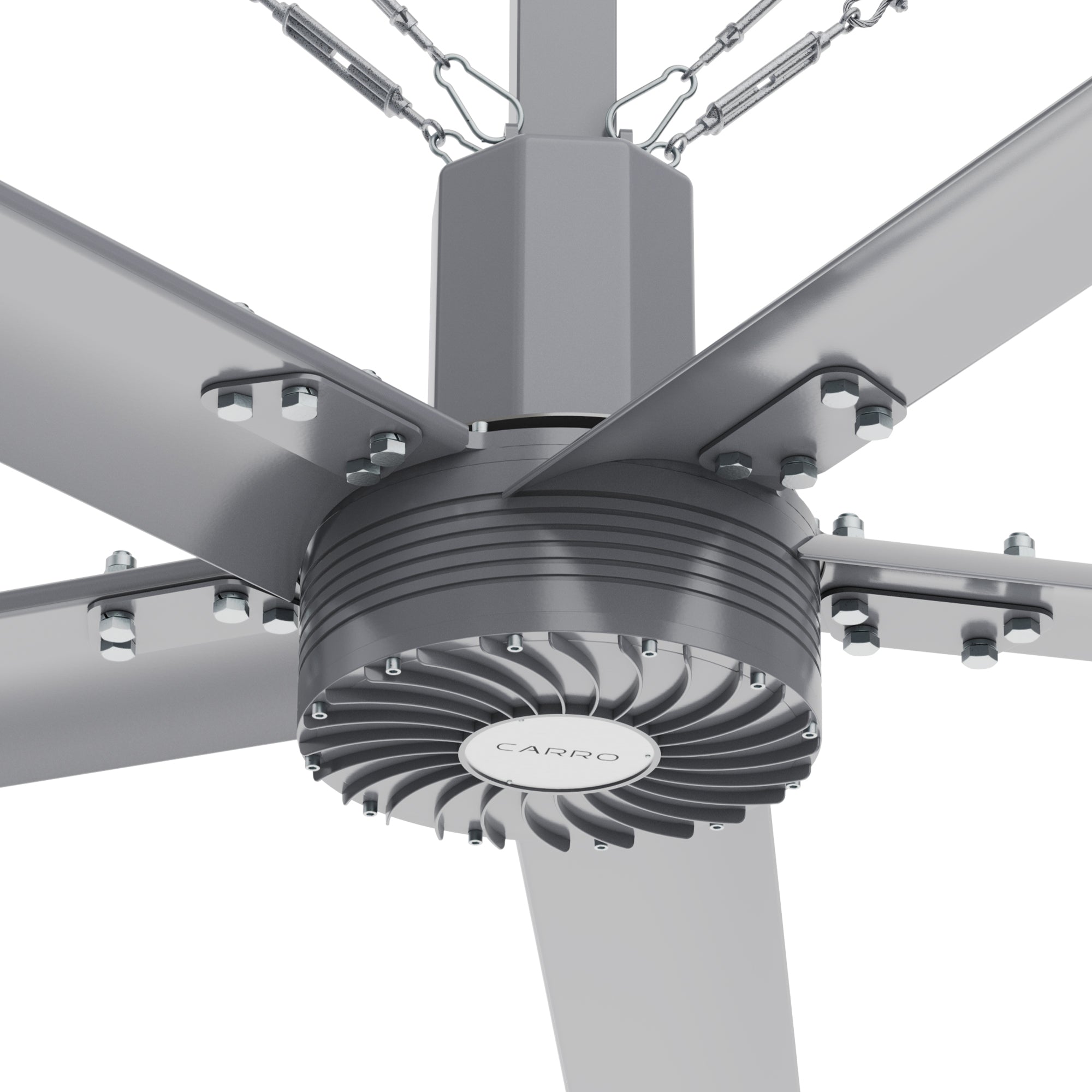

- Gearless Direct drive motor which means it operates silently and requires zero maintenance.
- Reversible DC Motor cools in the summer and gently circulates heated air in the winter, aiming for optimal energy efficiency and comfort.
- Capable of effectively covering indoor spaces up to 4844 square feet, making it suitable for large areas.
- Comes with a 23.6'' Down Rod and convenient wired wall control.
- Angled structures winglets on the end of the blades provide efficient and effective air movement.

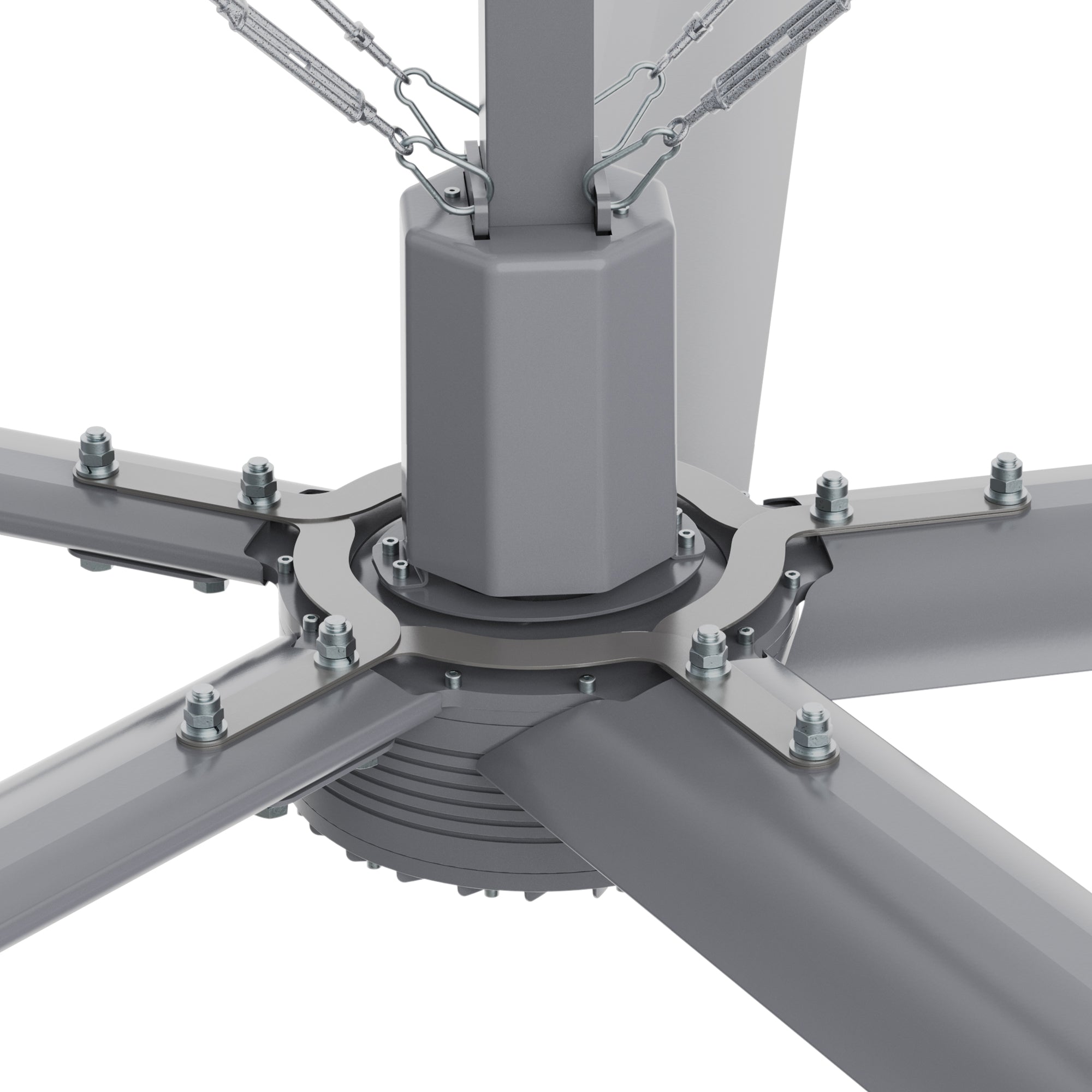

- I-shaped Steel Structure accessories as the standard mounting hardware.
Specification
| Model | Diameter | Coverage Area (sqft) | Power & Frequency |
|---|---|---|---|
| CDC-125S-037-240 | 12 ft (3.7 m) | 4090 | 240V, 50/60Hz, 0.37 kW |
| CDC-165S-075-240 | 16 ft (5 m) | 4844 | 240V, 50/60Hz, 0.75 kW |
| CDC-105S-037-480 | 10 ft (3 m) | 2691 | 3P-480V, 50/60Hz, 0.37 kW |
| CDC-125S-037-480 | 12 ft (3.7 m) | 4090 | 3P-480V, 50/60Hz, 0.37 kW |
| CDC-145S-075-480 | 14 ft (4.3 m) | 4844 | 3P-480V, 50/60Hz, 0.75 kW |
| CDC-165S-075-480 | 16 ft (5 m) | 4844 | 3P-480V, 50/60Hz, 0.75 kW |
| Model | Max Speed (RPM) | Maximum Airflow (CFM) | Motor Horsepower |
|---|---|---|---|
| CDC-125S-037-240 | 100 | 176500 | 0.5 hp(0.37 kW) |
| CDC-165S-075-240 | 80 | 353000 | 1.0 hp(0.75 kW) |
| CDC-105S-037-480 | 120 | 141200 | 0.5 hp(0.37 kW) |
| CDC-125S-037-480 | 100 | 176500 | 0.5 hp(0.37 kW) |
| CDC-145S-075-480 | 90 | 247100 | 1.0 hp(0.75 kW) |
| CDC-165S-075-480 | 80 | 353000 | 1.0 hp(0.75 kW) |
| Mounting Type | Downrod |
|---|---|
| Maximum Noise Level (dB) | 38 |
| Light | Without Light |
| Location Indoor/ Outdoor | Indoor use only (workshops, warehouse, restaurants, retail spaces, fitness centers, and more.) |
| Downrod Included | 23.6 inch down rod |
| Energy Efficient Certified | ETL Certified Product |
| Number of Speed | Variable |
| Assembled Required | Yes |
| IP Rating | IP55 |
| Mode | Winter, Summer (Forward and Reverse) |
| Motor Type | Neodymium Magnet Direct-Drive Motor |
| Color Finish of Fan Hub | Silver |
| Control | Wire Wall Controller |
| Control Mode | FI110-A Wall Controller |
| Number of Blades | 5 |
|---|---|
| Reversible Blades | No |
| Blade Material | Aluminum-magnesium Alloy |
| Color Finish of Blade | Silver |
| Motor | 3 Years Manufacturer Warranty |
|---|---|
| Others | 1 Year Manufacturer Warranty |
Includes
- Variable-speed Direct-Drive Motor
- Five Aluminum-magnesium Alloy Blades
- FI110-A Controller
- Assembled with 23.6 inches downrod
- Screw Package.
- The I-shaped Steel Structure accessories.
Enhanced Energy Efficiency
-

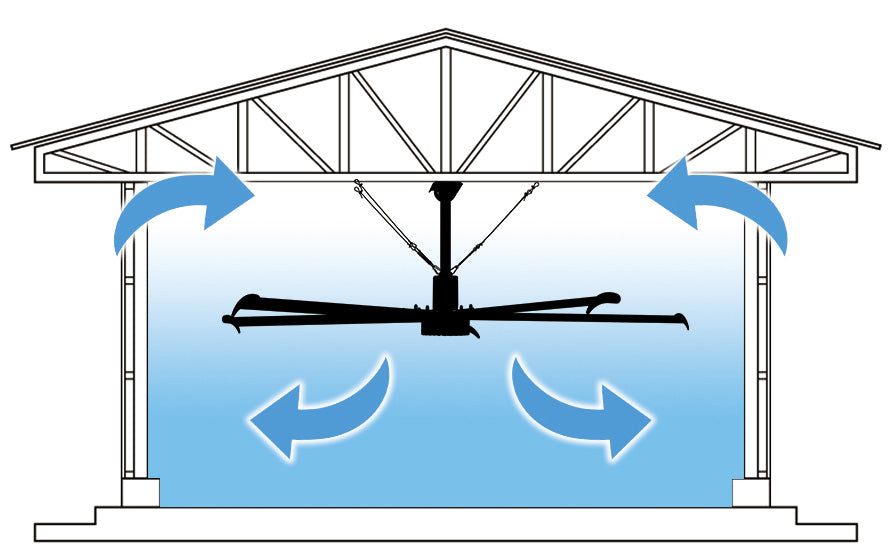

Counterclockwise-Summer Mode Generates Cooling Effect
Our commercial & industrial overhead fans deliver energy-efficient cooling by generating high-volume, low-speed airflow, which facilitates sweat evaporation, cools the skin, reduces the perceived temperature, and creates a more comfortable environment for workers. By efficiently distributing cool air from HVAC systems, HVLS fans help speeds up indoor cooling, which reduces the reliance on air conditioning systems and saves energy costs while maintaining optimal working conditions in large industrial spaces.
-

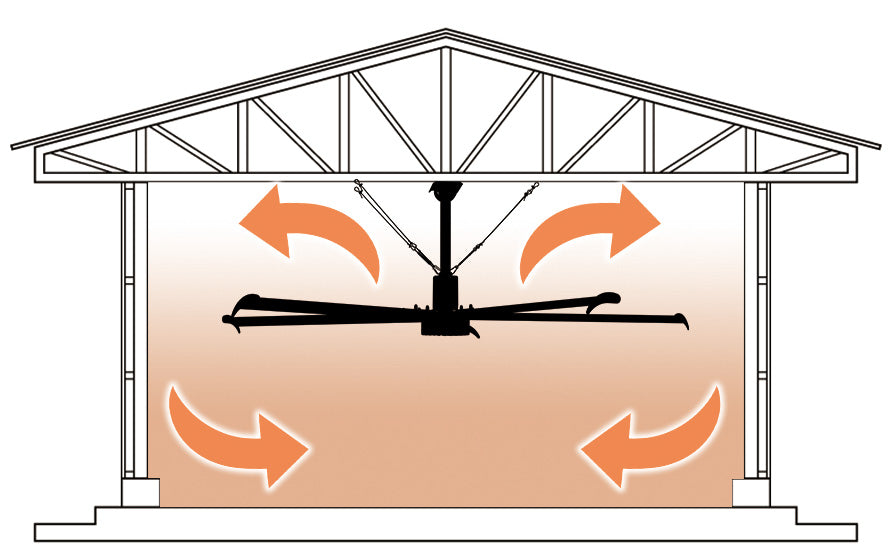

Clockwise-Winter Mode Effectively Mixes Warm and Cold Air
HVLS Overhead Fans aren’t just for cooling. Warm, lighter air accumulates at the ceiling, and the taller the ceiling, the greater the temperature difference between levels. This mode gently pushes the warm air that has risen to the ceiling back down to floor level, promoting even heat distribution throughout the space. As a result, you won't need to run heaters as often, leading to significant energy savings, enhancing energy efficiency and providing a more pleasant environment for employees.
Improves Aerodynamic Performance

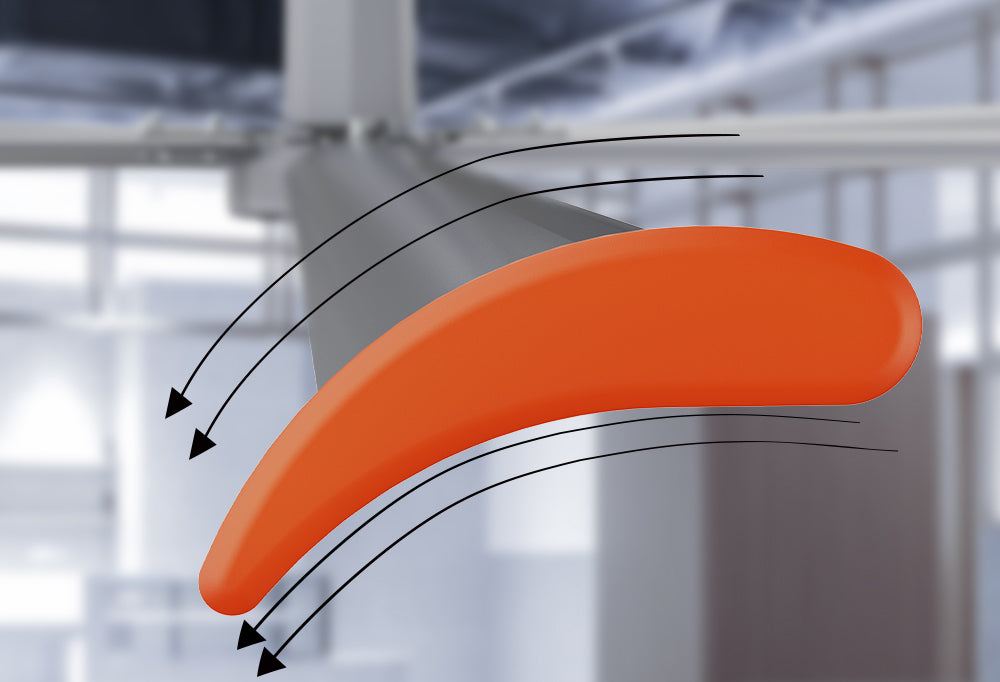

Each HVLS commercial and industrial cooling fan incorporates winglets, the small extensions found at the ends of the blades. During operation, the fan blades create vortices at their ends, leading to increased energy consumption. To mitigate this energy loss, the winglets stabilize fan operation and improve the overall efficiency of the fan. Another benefit of winglets is their ability to extend the effective span of the fan blades. The effective span refers to the part of the blade that efficiently moves air. By adding winglets, the blades can produce more airflow without needing to increase their physical length.
Improving Indoor Environments
-
Stale air puts workers' health at risk
-
Circulated air keeps workers healthy and productive.
Applications
-

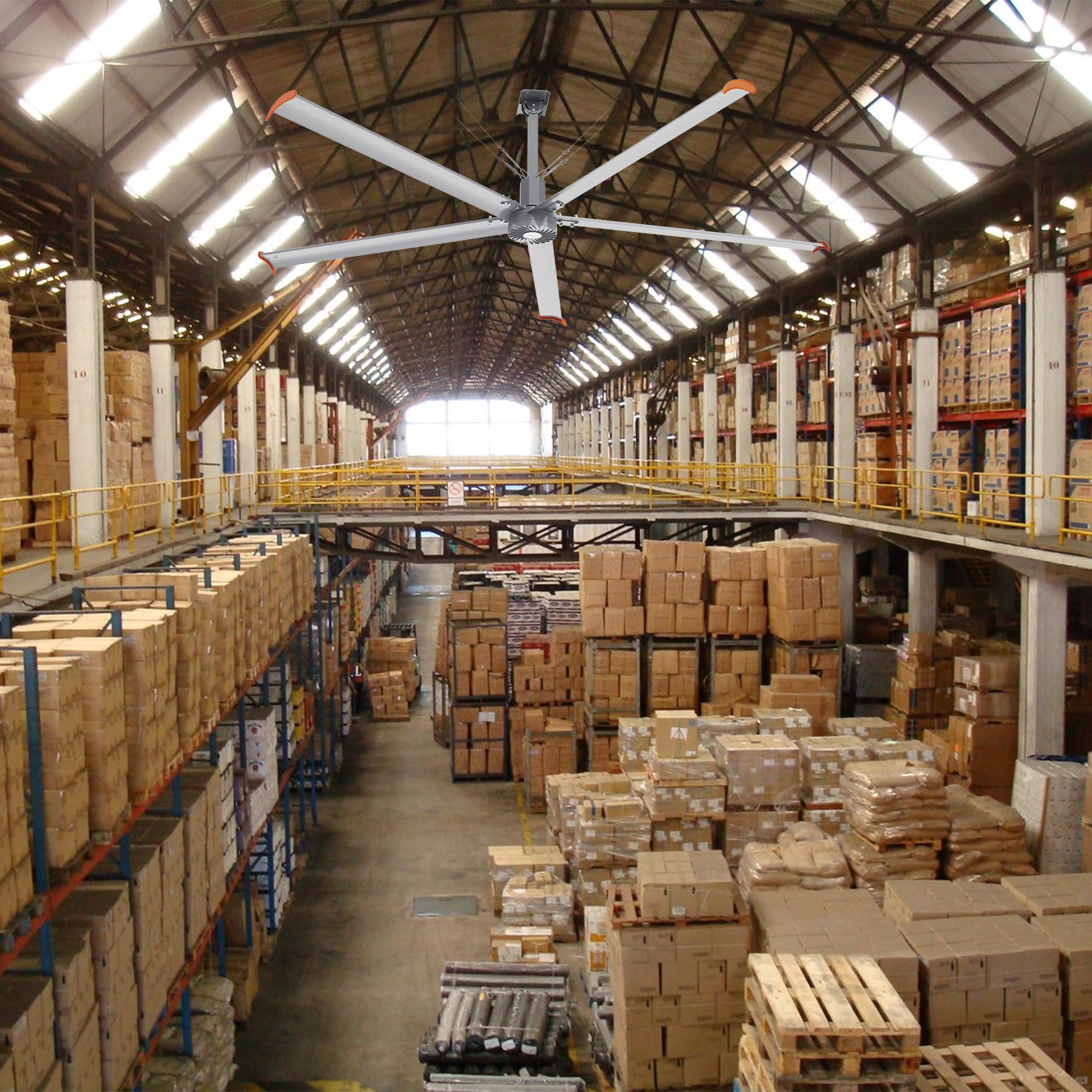

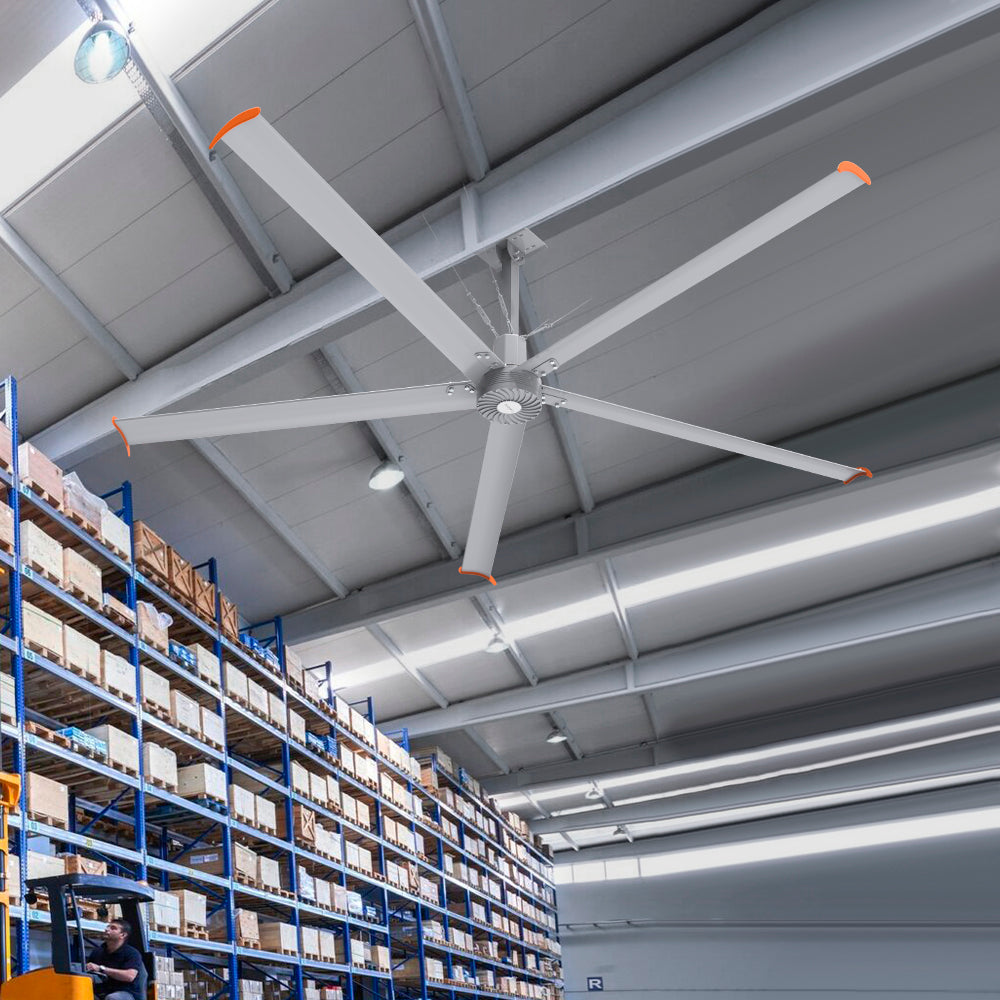

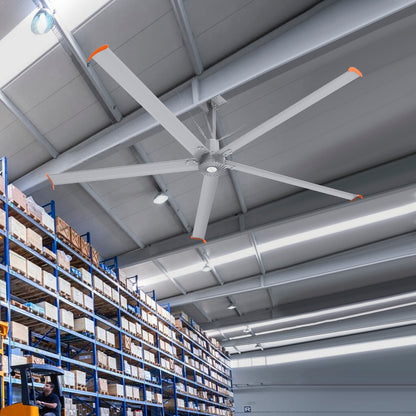

Warehouses
Industrial HVLS fans effectively circulate air, reducing hot and cold spots, which leads to lower heating and cooling costs. They keep workers comfortable, increasing productivity.
-

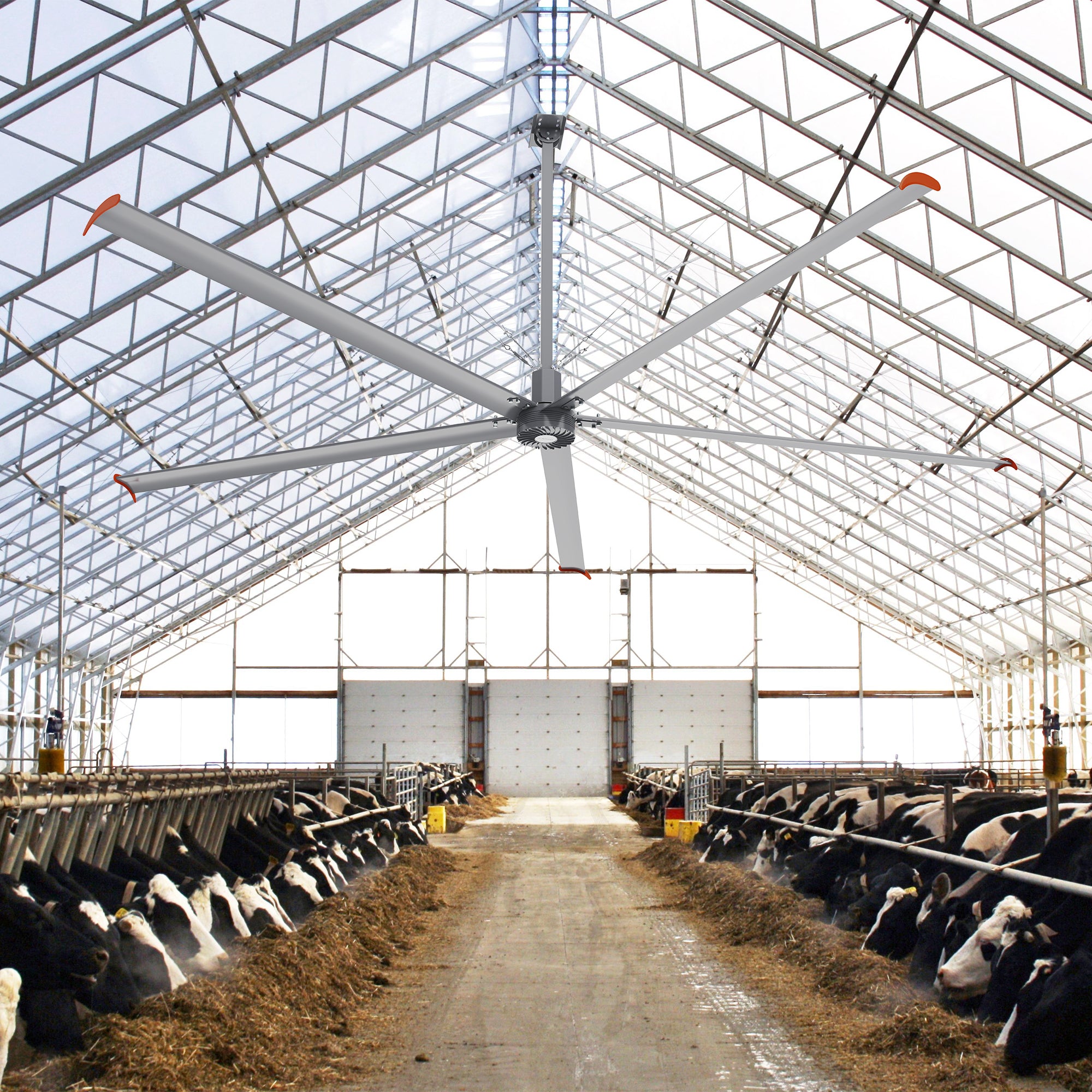

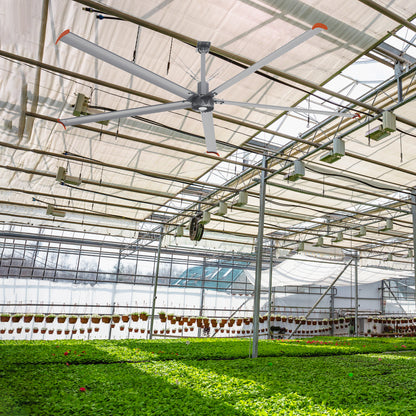

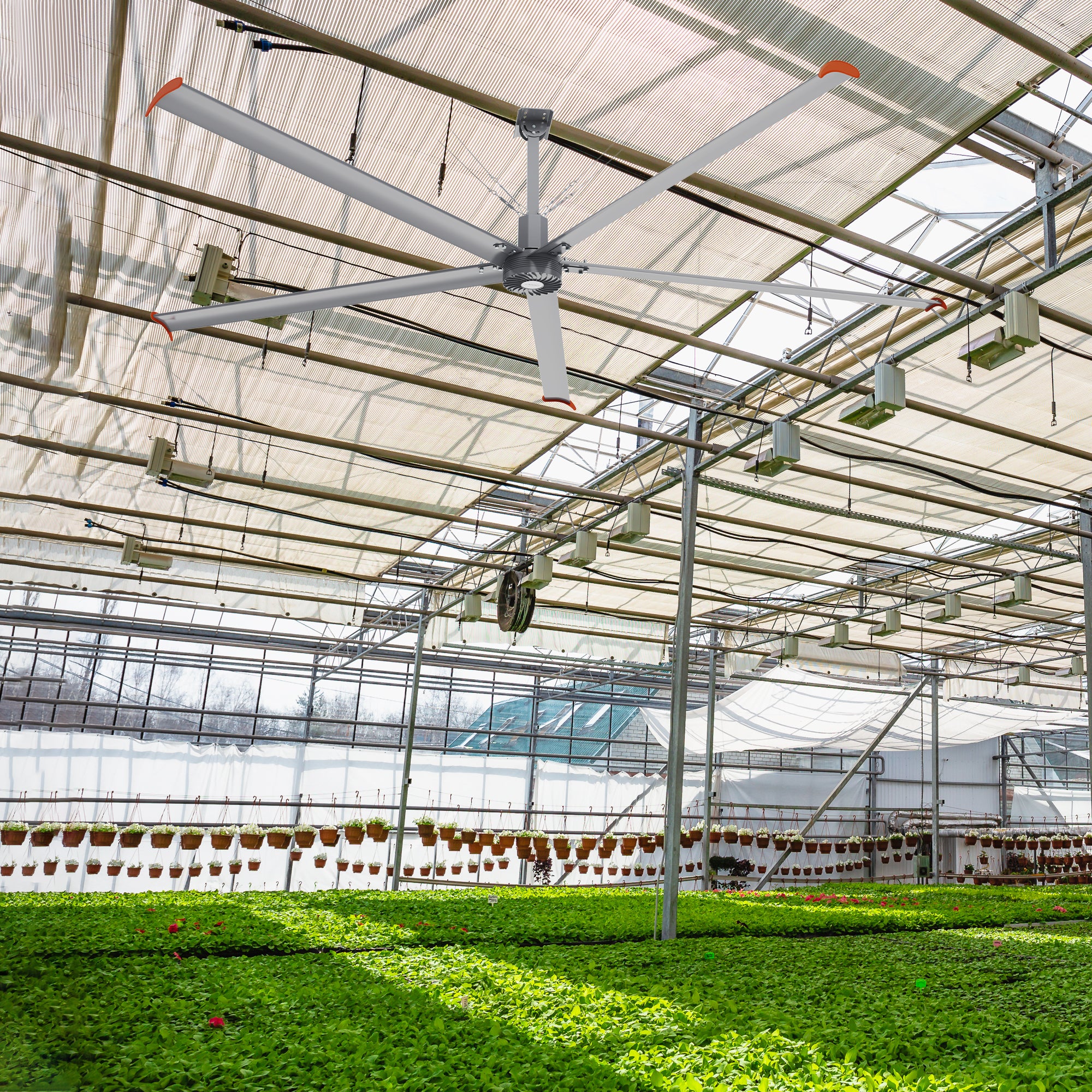

Agriculture
Our commercial fans improve air circulation and control humidity, preventing mold and mildew growth, reduce feed spoilage,protecting crops and livestock, produce healthier happier animals
-
Manufacturing Plants
Industrial cooling fans protect sensitive machinery and improve air quality by dispersing fumes and particulates, reducing HVAC costs and promoting worker safety.
-

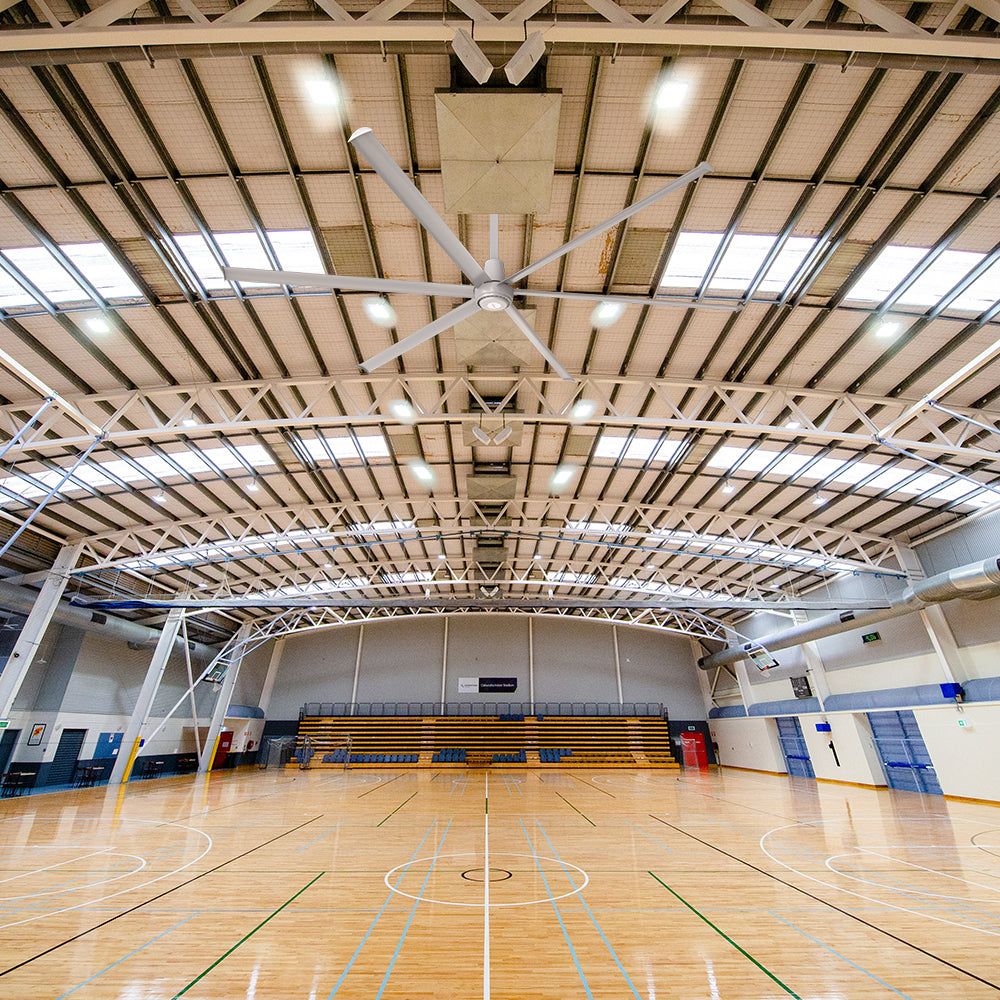

Sports Arenas
Commercial HVLS fans keep spectators and athletes cool, reduce odors, and improve ventilation. Their quiet operation ensures a pleasant environment without disrupting the event experience.
-

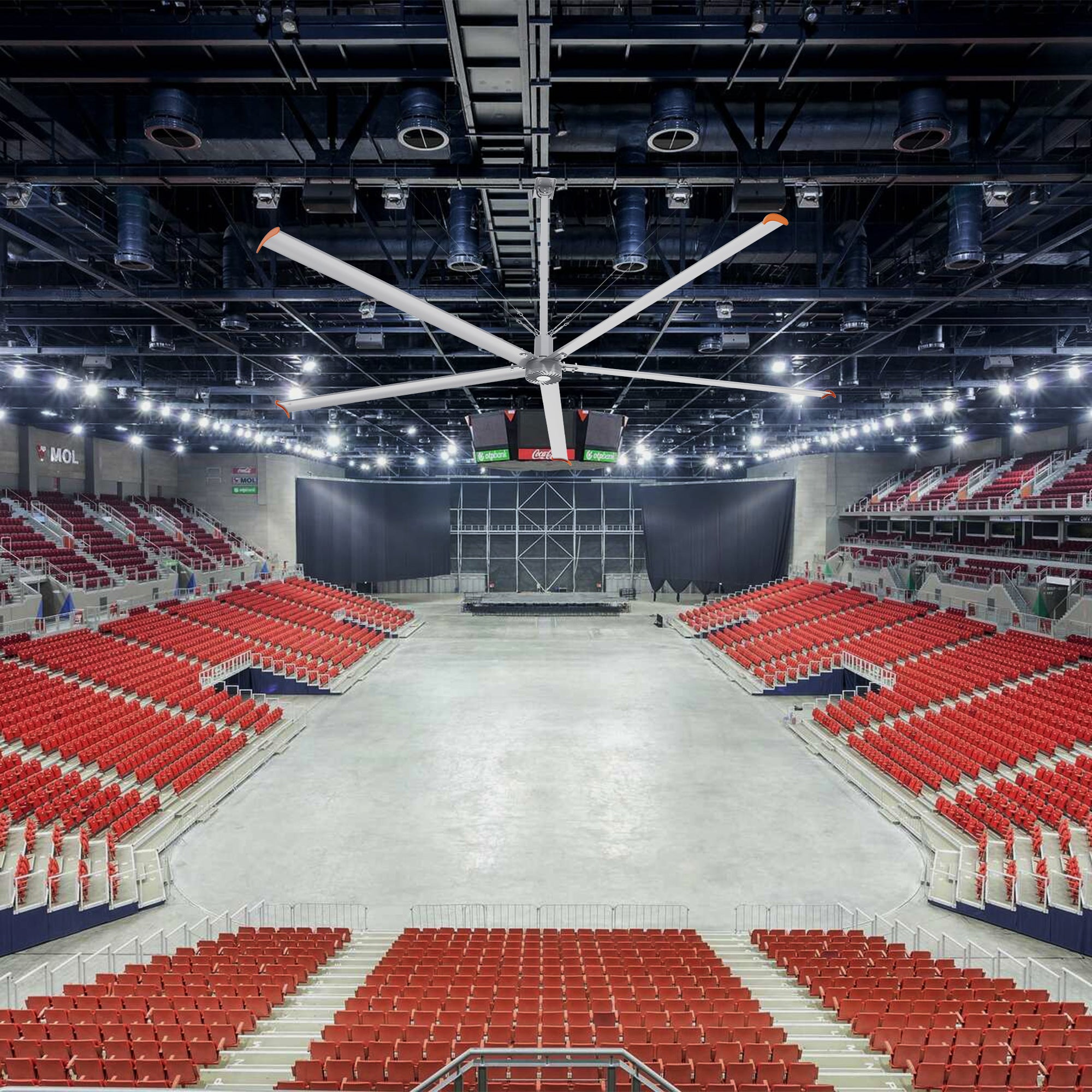

Gymnasiums
Commercial large fans in gymnasiums prevent stagnant air, control humidity, and ensure fresh air circulation, contributing to optimal performance conditions for athletes.
-
Factories
Industrial fans help reduce cooling costs, enhance energy efficiency and create a healthier work environment. in large structures, especially those with large openings like big shutter doors.
-

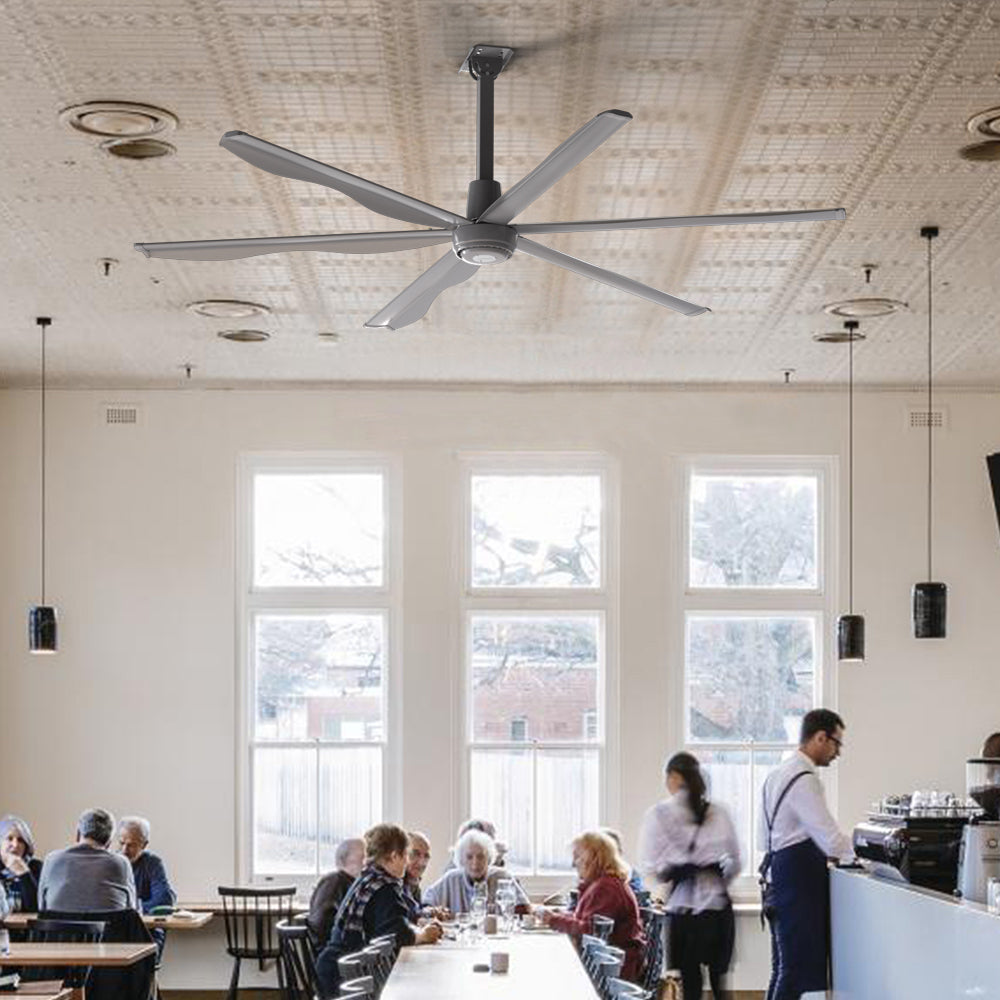

Restaurants / Bars
By promoting effective temperature regulation, commercial fans improve customer or kitchen staff comfort with better airflow, reduce smoke and odors and enhances the dining experience.
-
Aviation / Airports / Station
Help lower costs, reduce the load on HVAC systems maintain statable temperature and keeping passengers and staff comfortable by utilizing a high-volume, low-speed industrial fans.
