• A black SmaFan Olinda 52-inch flush mount ceiling fan with LED light and four blades , shown installed on a white ceiling above a bookshelf, with a white wall control switch also visible in the bottom left corner.
  • The image prominently features an Olinda 52" Flush Mount Ceiling Fan in Black with LED Light, seamlessly integrated into a modern living room setting. The fan&
  • The image shows a modern dining room featuring an Olinda 52-inch Flush Mount Ceiling Fan in matte black. This fan&
  • A modern kitchen with white cabinets, dark tile backsplash, and 52 inch black flush-mount ceiling fan with an integrated LED light in the center of the ceiling. The kitchen features stainless steel appliances, dark countertops, and a patterned area rug on a wooden floor.
  • Olinda 52-inch modern black ceiling fan with dimmable LED light kit, showing split display of cool white (4000K) and warm light (2700K) color options, 10%–100% dimmable brightness, and over 50,000 hours LED lifespan.
  • Olinda 52-inch flush mount ceiling fan in matte black with LED light, shown with dimensions and features. The diagram highlights 11-inch total height, 26-inch blade length, 7.6-inch motor housing width, 8.8-inch light width, plus features including whisper-quiet DC motor, 3 color temperature dimmable light, 10-speed levels, energy-saving design, wall switch control, and reversible airflow.
  • The Smafan 52-inch Olinda Low Profile Ceiling Fan with LED Light and Wall Control is designed for large indoor rooms and offers a blend of modern style and functional performance.
  • Diagram showing how to reverse a Carro Smafan ceiling fan direction with one tap using a wall switch. The graphic illustrates summer mode (counterclockwise airflow for cooling) and winter mode (clockwise airflow for warmth), eliminating the need for a ladder.
  • Wiring diagram for ceiling fan with wall control: illustrates connections between wall switch, power source, and fan, including hot/live (black/red), neutral (white), and ground (green/yellow) wires, with brown and black wires from wall control connecting to corresponding fan wires.
  • Olinda Flush Mount Ceiling Fan with LED Light and Wall Switch 52 inch
1 10
Small promotional banner with text about National Ceiling Fan Day! Up to 75% off

Olinda Flush Mount Ceiling Fan with LED Light and Wall Switch 52 inch

CFW524E5-L11-B2-1-FM

Buy now and earn 209 SmafanCredits!
$209.00
$209.00
$209.00
Shipping calculated at checkout.

Hurry up ! Sale end in:

$50 off

Code:

NEW50OFF

  • CONVENIENT CONTROL: Includes a wall control for speed, lighting, and reversible mode, so you can change airflow direction without climbing a ladder to reach the fan body. No more worrying about misplaced remotes or hard-to-reach switches.
  • EFFICIENT SEASONAL AIRFLOW: With its reversible function, this energy efficient ceiling fan works with your HVAC system to maximize comfort and savings. In summer, it enhances cooling by pushing air downward for a refreshing breeze, while in winter, it circulates warm air upward to support heating efficiency.
  • QUIET & ENERGY-SAVING: Powered by an advanced DC motor, this modern ceiling fan runs whisper-quiet, uses less energy than AC fans, and provides powerful airflow for everyday comfort.
  • PERFECT FOR LOW CEILINGS: Designed as a flush mount indoor ceiling fan, Olinda is the ideal choice for rooms with ceilings under 8 feet. A smart fit for bedrooms, living rooms, or apartments where every inch of height matters.
  • ADJUSTABLE LIGHTING: Integrated LED light provides bright illumination with adjustable color temperatures from warm to cool, perfect for reading, dining, or relaxing.
Color: Black
    SHIPPING

    Free Shipping $39+

    Order Processing Time: Within 1-2 business days.

    Estimate Transit Time: Shipping takes 2-6 business days. (continental USA only)

    More details please see our shipping & receiving.
    RETURNS INFO

    90-day return, exchange, and refund.

    More information View images
    A black SmaFan Olinda 52-inch flush mount ceiling fan with LED light and four blades , shown installed on a white ceiling above a bookshelf, with a white wall control switch also visible in the bottom left corner.

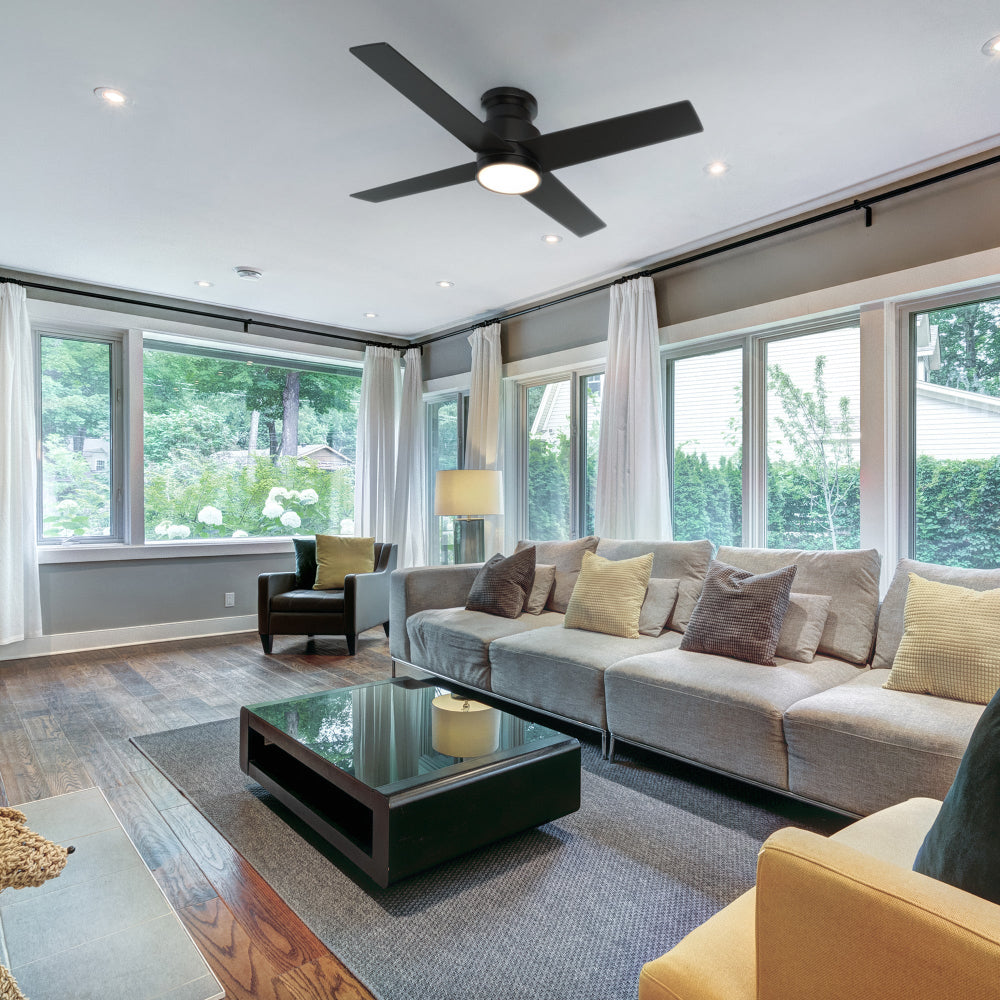

    The image prominently features an Olinda 52" Flush Mount Ceiling Fan in Black with LED Light, seamlessly integrated into a modern living room setting. The fan&

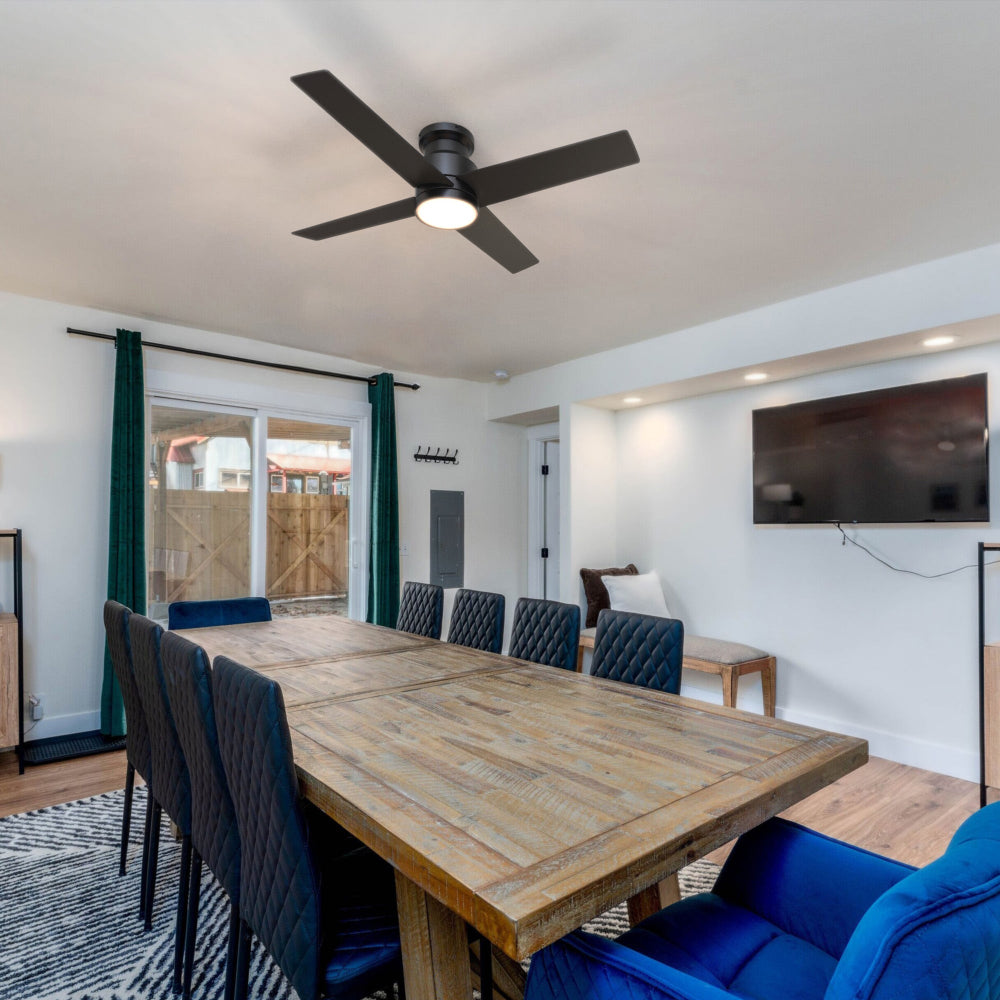

    The image shows a modern dining room featuring an Olinda 52-inch Flush Mount Ceiling Fan in matte black. This fan&

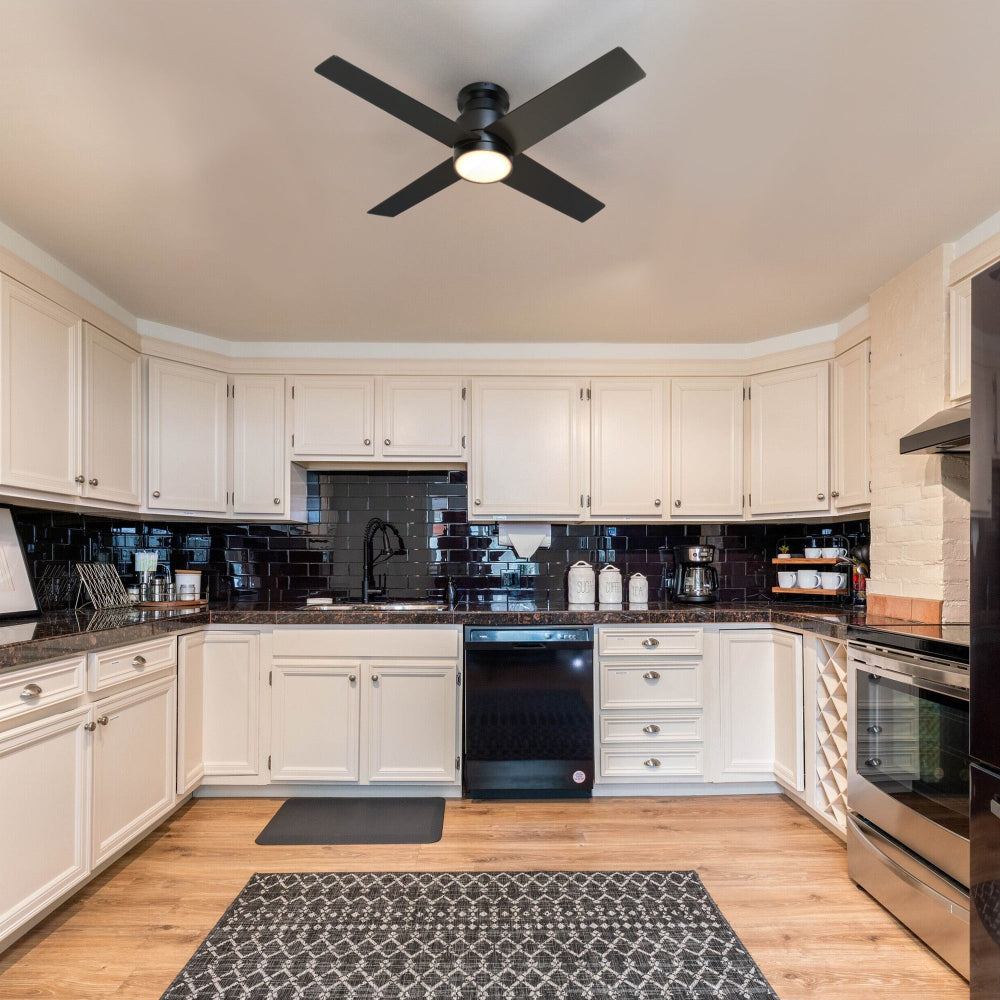

    A modern kitchen with white cabinets, dark tile backsplash, and 52 inch black flush-mount ceiling fan with an integrated LED light in the center of the ceiling. The kitchen features stainless steel appliances, dark countertops, and a patterned area rug on a wooden floor.
    Olinda 52-inch modern black ceiling fan with dimmable LED light kit, showing split display of cool white (4000K) and warm light (2700K) color options, 10%–100% dimmable brightness, and over 50,000 hours LED lifespan.
    Olinda 52-inch flush mount ceiling fan in matte black with LED light, shown with dimensions and features. The diagram highlights 11-inch total height, 26-inch blade length, 7.6-inch motor housing width, 8.8-inch light width, plus features including whisper-quiet DC motor, 3 color temperature dimmable light, 10-speed levels, energy-saving design, wall switch control, and reversible airflow.
    The Smafan 52-inch Olinda Low Profile Ceiling Fan with LED Light and Wall Control is designed for large indoor rooms and offers a blend of modern style and functional performance.
    Diagram showing how to reverse a Carro Smafan ceiling fan direction with one tap using a wall switch. The graphic illustrates summer mode (counterclockwise airflow for cooling) and winter mode (clockwise airflow for warmth), eliminating the need for a ladder.
    Wiring diagram for ceiling fan with wall control: illustrates connections between wall switch, power source, and fan, including hot/live (black/red), neutral (white), and ground (green/yellow) wires, with brown and black wires from wall control connecting to corresponding fan wires.
    Olinda Flush Mount Ceiling Fan with LED Light and Wall Switch 52 inch

    Overview

    Experience modern simplicity with the Olinda 52" Ceiling Fan. Featuring a sleek matte black finish and four streamlined blades, this fan brings a soft contemporary touch to any indoor space. The low-profile housing fits flush to ceilings under 8 feet, making it a perfect match for bedrooms, living rooms, or apartments where height is limited. With a quiet, energy-efficient DC motor and integrated LED lighting, the Olinda blends style and performance in one elegant design. Certified with ENERGY STAR, it delivers comfort you can feel and efficiency you can trust.ing, or relaxing.

    Energy Star®

    Wall Switch Control

    Easy To Install

    10-Speed DC Motor

    Whisper Motor

    Durable LED Light Kit

    Dimmable LED Light Kit

    Energy Efficient

    Indoor Use

    Summer Mode

    Winter Mode

    Wobble-free

    • With a 4670 CFM airflow output, it delivers a high air volume.
    • Tap the "reversible function" of wall switch to change direction.
    • Ideal fit in low-profile spaces. Not compatible with angled or vaulted ceilings.

    Note: No smart function.

    Specification
    SmaFan-Olinda-Flush-Mount-ceiling-fan-specification

    Fan Blade Spain (in.)

    52 inch

    See Similar Items

    Ceiling Fan Size

    Large

    See Similar Items

    Motor Type

    DC Motor

    See Similar Items

    Number of Blades

    4 Blades

    See Similar Items

    Light Bulb Type

    LED

    See Similar Items

    Control Type Included

    Wall Control

    See Similar Items

    Mounting Type

    Flush Mount

    See Similar Items

    Indoor/ Outdoor

    Indoor

    See Similar Items

    Feature
    Returns & Exchanges Within 90 days
    Fan Blade Span (in.) 52 inch
    Recommended Room Size Large Room (145-300SQFT)
    Rooms Living room, Bedroom, Dinning rooms, Kitchen, Bathrooms, Laundry rooms, Craft / Hobby Room, Mudroom / Utility Room
    Special Feature Full function wall control - fan speed, light on/off/dim, reverse function
    10-Speed reversible whisper quiet DC motor
    Integrated dimmable 4000k LED light kit, Quick & Easy Install
    Location Indoor/ Outdoor Indoor use only
    What does location type mean? Can be used in dry locations
    Mounting Type Low Profile
    What mounting type do I need? Flush Mount
    Ceiling Type Flat
    Downrod Included N/A
    Extension Downrods (If Applicable) N/A
    Light / No Light With LED Lights
    Product Weight (Lbs) 13
    Energy Efficient Certified ENERGY STAR® Certified
    Housing Color Matte Black
    Housing Color Family Black

    Blades
    Number of Blades 4 Blades
    Reversible Blades No
    Blade Material High-Quality Plywood
    Color Finish of Blade Black

    Controls
    Control Type Included Wall Control
    Batteries Included No
    Number of Batteries N/A
    Type of Batteries N/A
    Reverse Fan AirFlow Controlled via Wall Switch

    Lighting
    LED Light Kit Yes
    Light Included Yes
    Light Wattage 18 Watts
    Light Source Warm light, Cool light
    Light Life Span 50,000+ Hours
    Dimable Yes,(1300 lumens super bright LED kit with color temperature 2700K to 4000K)

    Motor
    Number of Speeds 10
    Motor Type Completely silent DC motors
    Reversable Motor Yes
    Voltage 120V
    Motor Voltage 22 Watts
    Maximum Noise 58 dB(A)
    Maximum Airflow 4670 CFM high-velocity

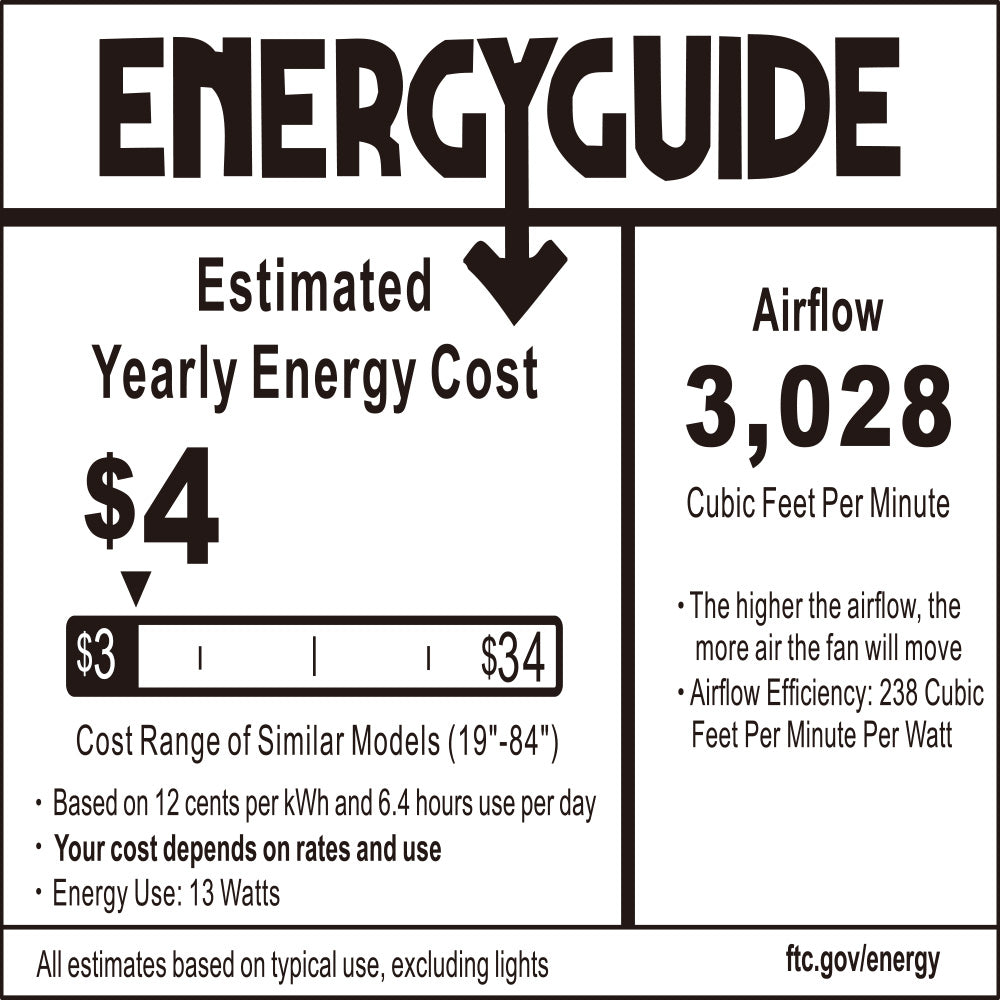

    Energy
    Energy Use 13 Watts
    Estimated Yearly Energy Cost $4
    Airflow Average 3028 Cubic Feet Per Minute
    Airflow Efficiency 238 cubic Feet Per Minute Per Watt

    Warranty-Certifications
    Listing Agency ENERGY STAR® Certified
    Motor Warranty 3 Year Limited Warranty
    Light Kit Warranty 3 Year Limited Warranty
    Other 3 Year Limited Warranty

    Includes
    • 10-speed reversible DC motor.
    • 4 High-quality Plywood Fan blades.
    • Wall switch.
    • Integrated LED Light Kit.
    • Screw Package.
    • Easy-to-follow, step-by-step instructions.
